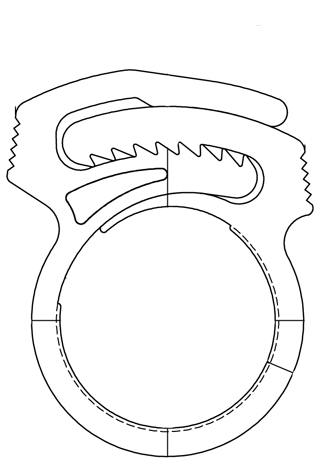

Plastic hose clamp, Ø14.5-16.6mm, black, 100pcs.
Art.-No. 192-10100 | SNP10-PA66HIRHSGF15-BK Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, impact modified, heat stabilized, glass-fibre reinforced (PA66HIRHSGF15)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION SNP10-PA66HIRHSGF15-BK
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses black
Variant Closed
Bundle Diameter max (Metric) 16.6mm
Bundle ∅ 14.5-16.6mm
Bundle ∅ min. 14.5mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Wall (WT) 1.8mm
Wall (WT) (imperial) .069"
Weight/Unit 0.002kg
Width (W) max. 26.9mm
Width (W) min. 17.6mm
Width (W) min. 0.693"
Width (W2) 5.9mm
∅ D max. 16.61mm
∅ D max. (imperial) 0.654"
∅ D min. 14.5mm
∅ D min. (imperial) 0.571"
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026128535
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00104
Packaging 1 - Weight (kg) 0.200001kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.21589999999999998m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Width (m) 0.396875m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
