12/06/2024

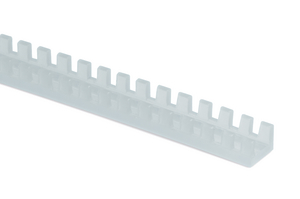

Edge protection 0.4-1.3 mm, PTFE, natural, 3 m reel
Art.-No. 251-30109 | G51TA-PTFE-NA Details

  • Very flexible
  • Easily and securely applied without adhesives
  • Close-fitting rail for effective, orderly-looking protection
  • Excellent resistance to high temperatures and most chemicals

Request your individual offer now

Application Flexiform grommet strips are used to protect cables and wires routed through sharp-edged cutout sections.
Colour Natural (NA)
Local order number G51TA
Material Polytetrafluoroethylene (PTFE)
PART DESCRIPTION G51TA-PTFE-NA
Pack Cont. 3m
Package Content packed in Reel
Product Family Flexiform G51T PTFE grommet strip
Product Group Edge protection for cut-out sections
Short Description Edge protection 0.4-1.3 mm, PTFE, natural, 3 m reel
Type G51TA
Variant Open
Height (H) 4.3mm
Height (H2) 2.7mm
Panel Thickness max. 0.4 - 1.3mm
Weight/Unit 0.02kg
Width (W) 3.9mm
Width (W2) 1.5mm
for Panel Thickness min - max 0.4 - 1.3 mm
for Panel Thickness min - max 0 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free No
Hazardous Goods No
Nato number 9390-12-182-1607
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MS21266-1T
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660486166
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.148m
Packaging 1 - Qty 3
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00044
Packaging 1 - Weight (kg) 0.06kg
Packaging 1 - Width (m) 0.148m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 3
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 0.56kg
Packaging 2 - Width (m) 0.267m
Reel Length (imperial) 9.7ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
