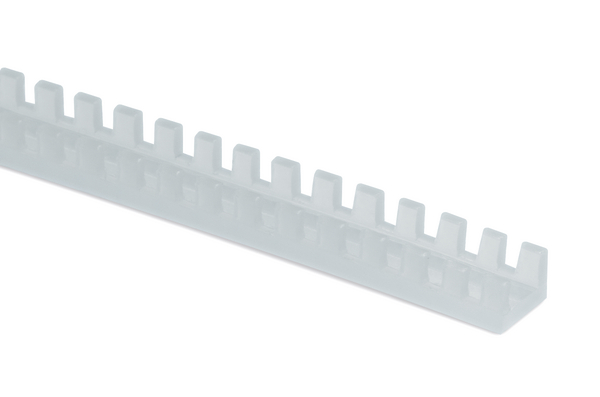

Edge protection 1.3-2.1 mm, PTFE, natural, 3 m reel
Art.-No. 251-30209 | G51TB-PTFE-NA Details

  • Very flexible
  • Easily and securely applied without adhesives
  • Close-fitting rail for effective, orderly-looking protection
  • Excellent resistance to high temperatures and most chemicals

Request your individual offer now

Application Flexiform grommet strips are used to protect cables and wires routed through sharp-edged cutout sections.
Colour Natural (NA)
Local order number G51TB
Material Polytetrafluoroethylene (PTFE)
PART DESCRIPTION G51TB-PTFE-NA
Pack Cont. 3m
Package Content packed in Reel
Product Family Flexiform G51T PTFE grommet strip
Product Group Edge protection for cut-out sections
Short Description Edge protection 1.3-2.1 mm, PTFE, natural, 3 m reel
Type G51TB
Variant Open
Height (H) 4.3mm
Height (H2) 2.7mm
Panel Thickness max. 1.3 - 2.1mm
Weight/Unit 0.021kg
Width (W) 4.6mm
Width (W2) 2.4mm
for Panel Thickness min - max 1.3 - 2.1 mm
for Panel Thickness min - max 0.1 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free No
Hazardous Goods No
Nato number 9390-12-171-1470
Operating Temperature -60 °C to +260 °C, intermittent +350 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MS21266-2T
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660114311
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.148m
Packaging 1 - Qty 3
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00044
Packaging 1 - Weight (kg) 0.063kg
Packaging 1 - Width (m) 0.148m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 3
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 0.563kg
Packaging 2 - Width (m) 0.267m
Reel Length (imperial) 9.7ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
