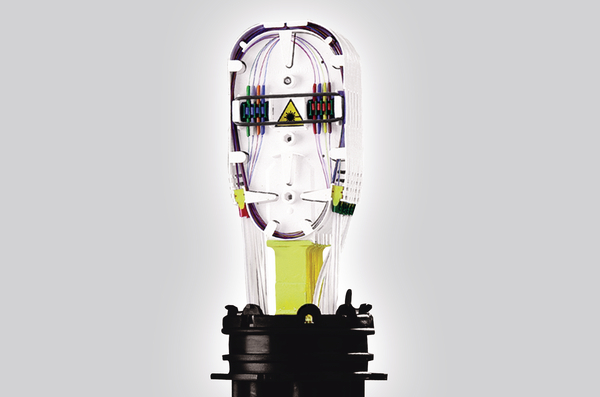

FRBU 11 Port Closure : FRBTB-AXXEA61

A Length , Article number: 857-00623

Features

  • Maximum 72 fibre splice capacity
  • 10 round ports and 1 oval port
  • Accommodates Hellapon Medium stacked or Hellapon Small trays
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FRBU 11 Port Base A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (2) Tray Tool Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Cover Type A
Method of Sealing Cablelok, Heatshrink
Pack Cont. 1
Package Quantity per kit
PART DESCRIPTION FRBTB-AXXEA61
Port LM, B, R
Port count 11
Product Family A Length
Product Group FRBU 11 Port Closure
Qty Trays 6
Splice Capacity 72
Technical Description The FRBU 11 Port A length closure is supplied with a Polypropylene base. The base configuration of 10 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 6 Hellapon medium stacked or 6 Hellapon small trays giving a maximum of 72 fibre splices based on 12 fibres per tray. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small
Variant Outdoor Enclosure

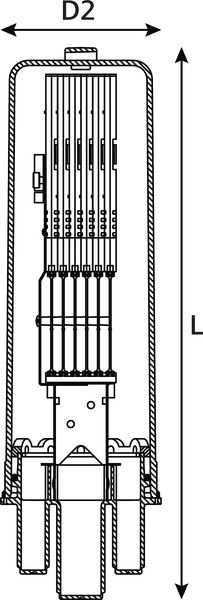

D1 130mm
D1 5.1"
D2 130mm
D2 5.1"
Length 435mm
Material Polypropylene (PP)
EAN / GTIN 5022660112287
Packaging 1 - Weight (kg) 1.7kg
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
UNSPSC Key 43223338
