FRBU 9 Port Closure : FRBTB-AXXNB2X

A Length, Article number: 857-00628

Features

  • Maximum 144 fibre splice capacity
  • 8 round ports and 1 oval port
  • Accommodates Hellapon Medium stacked or Hellapon Small trays
  • Maximum 24 splices per tray (double stacked)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FRBU 9 Port Base A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (2) Tray Tool Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Cover Type A
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FRBTB-AXXNB2X
Port L, B, R
Port count 1, 4, 4
Product Family A Length
Product Group FRBU 9 Port Closure
Qty Trays 2
Technical Description The FRBU 9 Port A Length closure is supplied with a Polypropylene base. The base configuration of 8 round ports and 1 oval port covers a cable diameter range of 1.7 – 20.0mm when using Cablelok mechanical seals and 6.0 – 24.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 6 Hellapon Medium stacked or 6 Hellapon Small trays giving a maximum of 144 fibre splices based on 24 fibres per tray. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Medium

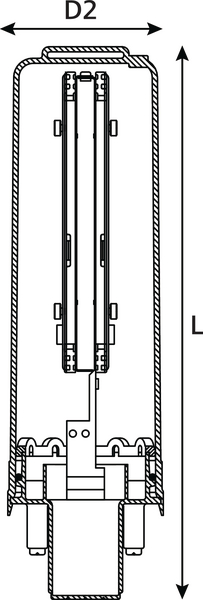

D1 130mm
D1 5.1"
D2 130mm
D2 5.1"
Length 435mm
EAN / GTIN 5022660112331
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
