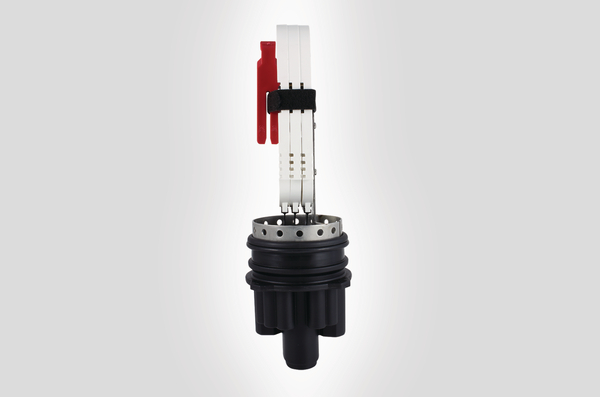

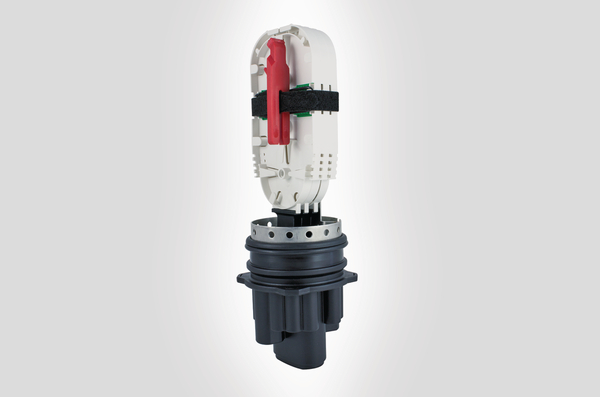

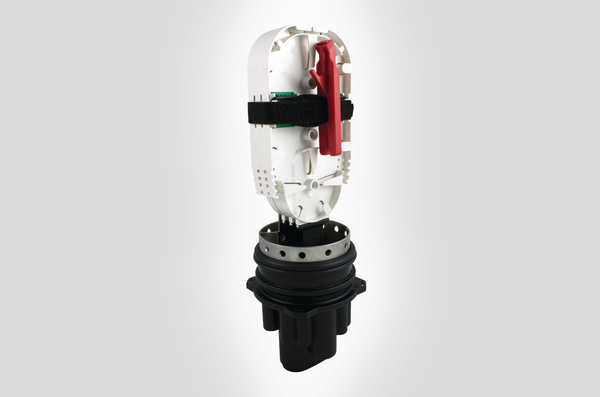

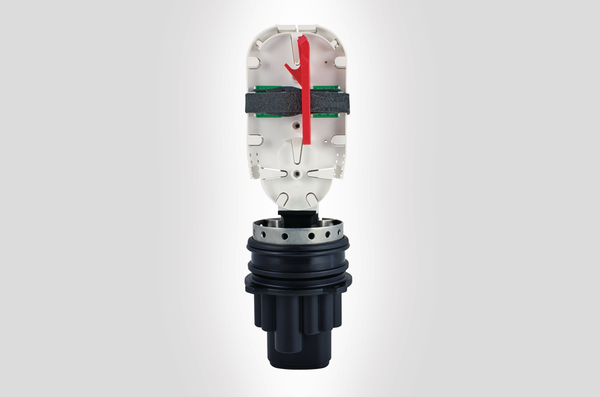

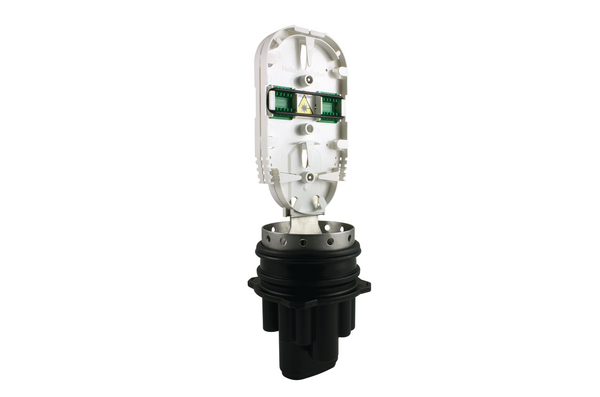

FST 13 Port Closure : FSTTB-AXXTA31

A Length, Article number: 857-00619


  • Maximum 36 fibre splice capacity
  • 12 round ports and 1 oval port
  • Fibre storage basket for loop through applications (Hellapon Small 1 tray version only)
  • Accommodates Hellapon Small trays
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
Colour Black (BK)
Content FST 13 Port Base Anchor Ring A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket (1 tray version only) Tray Support Frame Anchor Fixing Kit (2) Tray Tool (3 tray version only) Hook and Loop Tray Securing Strap (3 tray version only) Transportation Tubing Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Method of Sealing Cablelok
Pack Cont. 1Set
Package Quantity per kit
Port LM, B, R
Port count 1, 2, 10
Product Family A Length
Product Group FST 13 Port Closure
Qty Trays 3
Splice Capacity 36
Technical Description The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 3 Hellapon Small trays or 1 Hellapon Small tray and basket giving a maximum of 36 fibre splices based on 12 splices per tray. The fibre basket provides storage space for the storage of fibre loops within the closure. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small
Variant Outdoor Enclosure

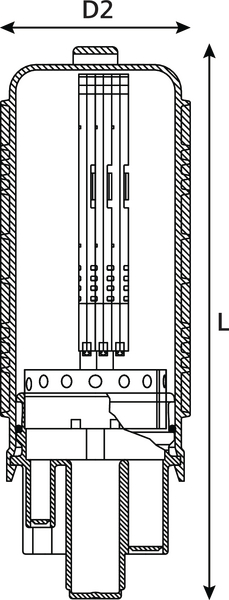

D1 110mm
D1 4.3"
D2 110mm
D2 4.3"
Length 310mm
Material Polypropylene (PP)
EAN / GTIN 5022660112454
Packaging 1 - Height (m) 0.146m
Packaging 1 - Length (m) 0.146m
Packaging 1 - Qty 1
Packaging 1 - Type Box
Packaging 1 - Volume (m³) 0.01179
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.553m
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
UNSPSC Key 43223338
