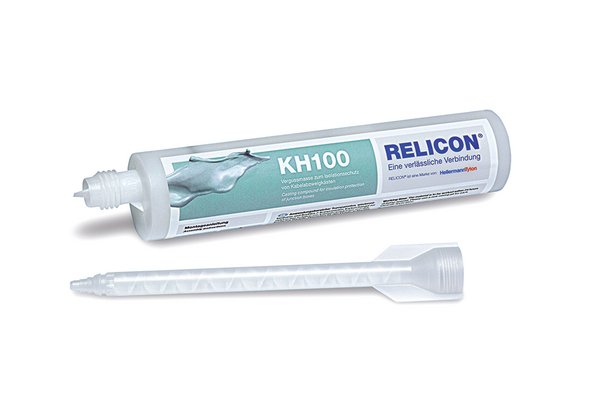

Two-component gel Gel-100 Mixing-Nozzle

RELICON KH 100, Article number: 435-00806

Two-component gel KH 100.

Features

  • Cartridge with mixing nozzle for use with standard cartridge applicator gun
  • Excellent flow properties
  • Soft elastic, vibration absorbing, removable
  • Outstanding insulating properties
  • Cures without developing heat
  • Saltwater resistant
  • Non-toxic, free of silicone and isocyanate
  • SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
  • Halogen free

Certifications & Approvals

Application

RELICON KH 100 is a transparent, removable, saltwater resistant, flexible two-component gel based on hydrocarbon resins in trade standard cartridges. It is especially suitable for use with junction boxes in the low-voltage range, located in a humid area or in the ground. After curing, RELICON KH 100 is characterised by its excellent resistance to moisture and very good insulating properties as well as good chemical resistance.
Application: Electrical insulation and moisture protection for the low-voltage networks. Particularly suitable for filling of cable junction boxes.

RELICON KH 100 is suitable for following markets and industries

Colour Transparent (CL), Orange (OG)
Density 0.95 g/cm³, 20 °C (DIN EN ISO 2811-2)
Description Short (BMEcat) (max. 150 characters) Mixing nozzle for Two-component gel
GLOBAL PART DESCRIPTION Gel-100 Mixing-Nozzle-KH100-CL/OG
Pack Cont. 10pcs.
Package Quantity per Bag
Pot Life 40 min. 23 °C
Product Family RELICON KH 100
Product Group Two-component gel
Removable Yes
Viscosity 2000 mPa*s, 5 °C (EN ISO 2555), 1500 mPa*s, 23 °C (EN ISO 2555)
Dielectric Strength >20 kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Gel KH 100 (KH100)
Operating Temperature - °C -40 °C to +90 °C
Shelf Life 18 months
Specifications
Vibrations absorbing Yes
EAN / GTIN 4250596414521
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00717m³
Packaging 1 - Weight (kg) 0.312kg
Packaging 1 - Width (m) 0.235m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 4
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648m³
Packaging 3 - Weight (kg) 4.548kg
Packaging 3 - Width (m) 0.4m
Storage Temperature +4 °C to +40 °C
Weight 0.312kg
ETIM 6.0 EC002837
