30/05/2024

HA67
Art.-No. 321-30301 | HA67-50.8/8.3 150 mm lengths with Thermochromatic paint-PO-X-BK Details

  • High shrink ratio, heavy-duty heat shrinkable tubing
  • Thermoplastic adhesive-lined tubing
  • Conforms well to highly variable substrate dimensions
  • Simplifies cable repair
  • Passes over large connectors and shrinks onto much smaller cable jackets
  • Environmental sealing and excellent insulation
  • Resistant to impact and abrasion
Show more

Request your individual offer now

Application Insulates, seals and protects large size differences between connectors and cables.
Application Tool CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION HA67-50.8/8.3 150 mm lengths with Thermochromatic paint-PO-X-BK
Pack Cont. 500pcs.
Package Content packed in Box
Printable No
Product Family HA67
Product Group Heat Shrinkable Tubing 6:1, adhesive lined with TCP dots in 150 mm cuts
Shrink Ratio 6:1
Type HA67-50.8/8.3 150 mm lengths with Thermochromatic paint
Variant Thick-Wall
Voltage range Low Voltage , up to 1,000 Volt
With inner glue (Yes/No) Yes

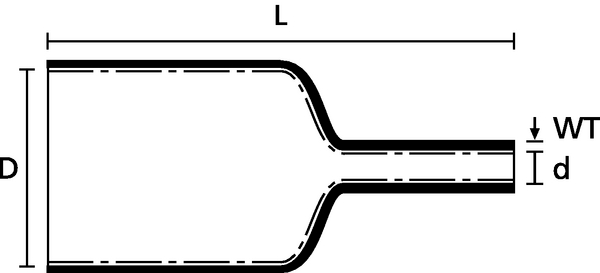

Length (L) 150mm
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 8.3mm
Supplied ∅ D 50.8mm
Tube Shape Round
Wall (WT) 4.8mm
Adhesive Hot melt adhesive
Copper corrosion non-corrosive
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 243
Elongation at break ≥400%
Halogen-free Yes
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
GTIN-13 / EAN 4031026427379
Packaging 1 - Height (m) 0.110m
Packaging 1 - Length (m) 0.310m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00494
Packaging 1 - Weight (kg) 0.4500kg
Packaging 1 - Width (m) 0.145m
Packaging 3 - Height (m) 0.57m
Packaging 3 - Length (m) 0.48m
Packaging 3 - Qty 250
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1313
Packaging 3 - Weight (kg) 11.95kg
Packaging 3 - Width (m) 0.48m
Packaging 4 - Height (m) 1.08m
Packaging 4 - Length (m) 1.16m
Packaging 4 - Qty 1000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.952
Packaging 4 - Weight (kg) 67.0kg
Packaging 4 - Width (m) 0.76m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
