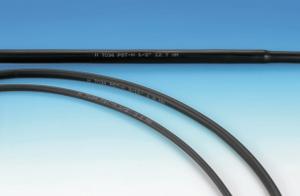

Heat Shrinkable Tubing 2:1 (9.5/4.8) black
Art.-No. 342-20950 | PST-H-9.5/4.8-POA-BK Details

  • Flexible, high performance elastomeric tubing
  • Resistant to diesel, aviation and hydraulic fluids
  • Used in aerospace, defence, railway and automotive applications
  • VG approved shrink tubing

Request your individual offer now

Application PST-H is used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation.
Application Tool H6100
Behaviour At Low Temperature not cracking
Colour Black (BK)
Elongation At Heat Aging 350%
Heat Shock Elongation 350%
Heat Shock Tensile Strength 14MPa
Heat Shock Test 4h/208°C
Local order number PST-H95BK
Material Elastomer, cross-linked (POA)
Minimum Tensile Strength At Heat Aging 14MPa
Pack Cont. 150m
Package Content packed in metre
PART DESCRIPTION PST-H-9.5/4.8-POA-BK
Product Family PST-H
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Short Description Heat Shrinkable Tubing 2:1 (9.5/4.8) black
Shrink Ratio 2:1
Size (imperial) 3/8"
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 4.8mm
Supplied ∅ D 9.5mm
Wall (WT) 1.00mm
Weight/Unit 0.02401kg
Designation as per VG-Norm VG 95343 T05 D 004 A
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 684 P2
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-12-151-4505
Operating Temperature -75 °C to +150 °C
Self extinguishing Yes
Specifications
Specifications DEF STAN 59-97/3, LEA, NF F 00-608, VG 95343-5:2016-10
Volume Resistance 10¹² Ω cm
Country of Origin NL
Customs Number 39173200
GTIN-13 / EAN 4031026150185
Packaging 1 - Height (m) 0.395m
Packaging 1 - Length (m) 0.245m
Packaging 1 - Qty 150
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.03823
Packaging 1 - Weight (kg) 3.602kg
Packaging 1 - Width (m) 0.395m
Packaging 3 - Height (m) 0.4m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 150
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.04
Packaging 3 - Weight (kg) 4.102kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 119.436kg
Packaging 4 - Width (m) 0.8m
Reel Length 100.0m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
