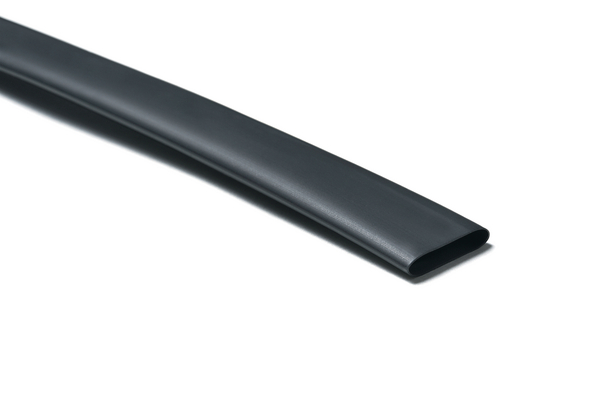

Heat Shrinkable Tubing 2:1 Thin Wall VG-Norm 19,0/9,5
Art.-No. 342-30060 | TE28 19.0/9.5-POA-BK Details

  • Thin wall, very flexible, high performance elastomeric heat shrink tubing
  • Used in aerospace, defence, railway and automotive harness applications
  • Resistant to diesel, aviation and hydraulic fluids
  • Provides a reliable protection against abrasion and mechanical damage
  • Very suitable for protecting cables and wire harnesses.
Show more

Request your individual offer now

Application TE28 is used for long-term protection of cables and wire harnesses in military, motor sports and aviation equipment.
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not cracking, not dripping, not fluid
Behaviour at low Temperature test method VG 95343-5
Colour Black (BK)
Elongation At Heat Aging 290%
Heat Aging Test 168h/160°C
Heat Aging test method VG 95343-5
Heat Shock Elongation 300%
Heat Shock Tensile Strength 10MPa
Heat Shock Test 4h/215°C
Heat shock test test method VG 95343-5
Material Elastomer, cross-linked (POA)
Minimum Tensile Strength At Heat Aging 11MPa
PART DESCRIPTION TE28 19.0/9.5-POA-BK
Pack Cont. 30m
Package Content packed in Reel
Printable No
Product Family TE28 - light weight
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Short Description Heat Shrinkable Tubing 2:1 Thin Wall VG-Norm 19,0/9,5
Shrink Ratio 2:1
Type TE28 19.0/9.5
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 9.5mm
Recov. ∅ d max. (imperial) .37"
Supplied ∅ D 19.0mm
Supplied ∅ D min. (imperial) .75"
Wall (WT) 0.75mm
Wall (WT) (imperial) .03"
Weight/Unit 0.0257kg
Designation as per VG-Norm VG 95343 T05 D 018 A
Dielectric Strength 20kV/mm
Dielectric Strength test method VG 95343-5
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 420%
Elongation at break test method VG 95343-5
Flammability VG 95343-5
Halogen-free No
Hazardous Goods No
Minimum Shrink Temperature +165 °C
Nato number 5970-12-307-8001
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications VG 95343-5:2016-10
Specifications
Tensile Strength 19MPa
Test Method Tensile Strength VG 95343-5
Volume Resistance 10¹¹ Ω cm
Water Absorption 1.0%
Country of Origin JP
Customs Number 39173200
GTIN-13 / EAN 4031026432700
Packaging 1 - Height (m) 0.4m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 30
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.016
Packaging 1 - Weight (kg) 0.771kg
Packaging 1 - Width (m) 0.1m
Reel Length 30m
Reel Length (imperial) 98.42ft
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
