Bottle Shapes, MIL-Style
Art.-No. 401-03116 | 103-53-L-FPMX-BK |

100 series supplied / fully recovered.

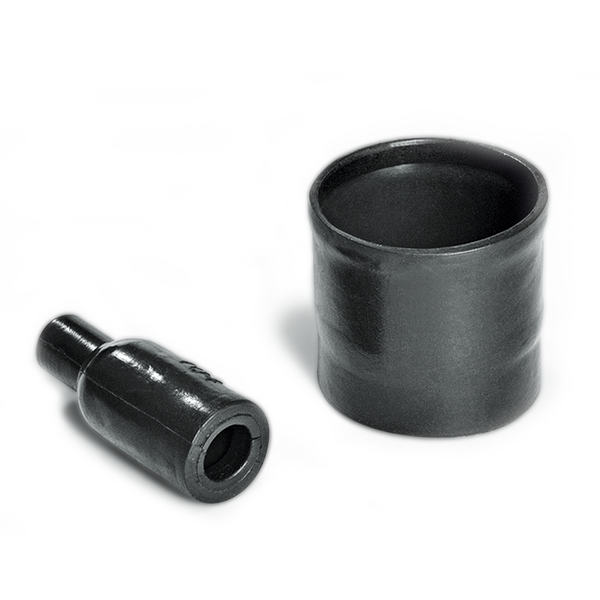

a: Expanded form (supplied)

b: Fully recovered form (after heating)

With circular grooved adaptor for strain relief
Combine with complementary adhesives for environmental sealing
Suitable for small cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	103-53-L
Material	Fluoropolymer, cross-linked (FPMX)
PART DESCRIPTION	103-53-L-FPMX-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style
Type	103-53-L
UV-Stabilised	No

Product Dimensions


⌀H max b	28.2mm
⌀H min a	42.7mm
⌀J max b	9.9mm
⌀J min. a	22.1mm
Flexibility	Semi rigid
HW ± 20%	2.0mm
JW ± 20%	2.0mm
P ± 10%	103.6mm
R nom	56.4mm
S nom	24.0mm
T ± 20%	1.7mm
V max	3.3mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-01-073-5164
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660693366

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
