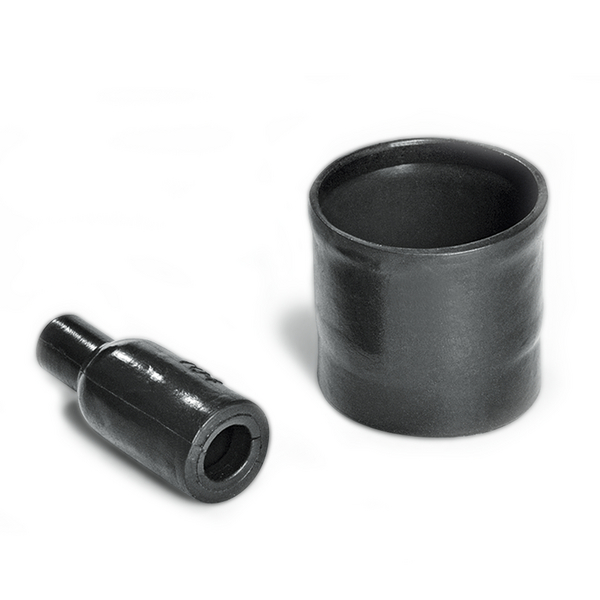

Bottle Shapes, MIL-Style
Art.-No. 401-04020 | 104-4-B7-PO-X-BK Details

  • With circular grooved adaptor for strain relief
  • Combine with complementary adhesives for environmental sealing
  • Suitable for small cable diameters

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 104-4-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 104-4-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 100 Series, with rib
Product Group Bottle Shapes, MIL-Style
Type 104-4-B7
Flexibility Semi rigid
HW ± 20% 1.3mm
JW ± 20% 1.3mm
P ± 10% 25.4mm
R max 14.2mm
S nom 6.9mm
T ± 20% 1mm
Weight/Unit 0.005kg
∅H max b 7.9mm
∅H min a 16.5mm
∅J max b 3.8mm
∅J min. a 16.5mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660403828
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.005kg
Packaging 1 - Width (m) 0.10m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
