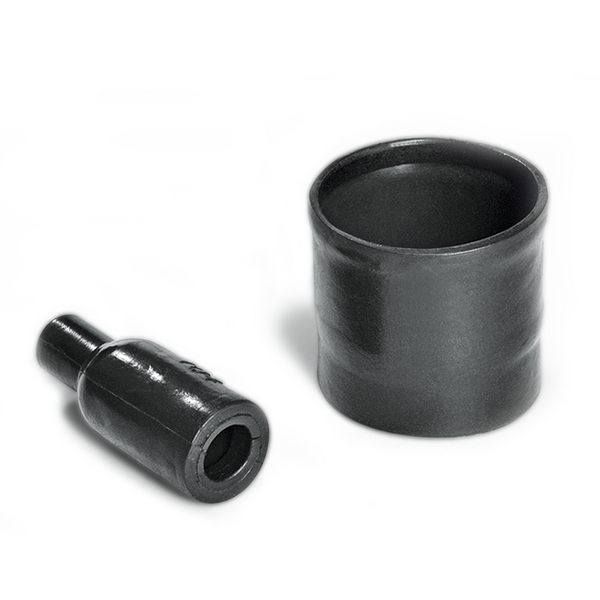

Bottle Shapes, MIL-Style
Art.-No. 401-06028 | 106-4-B7-PO-X-BK Details

  • With circular grooved adaptor for strain relief
  • Combine with complementary adhesives for environmental sealing
  • Suitable for small cable diameters

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 106-4-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 106-4-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 100 Series, with rib
Product Group Bottle Shapes, MIL-Style
Type 106-4-B7
Flexibility Semi rigid
HW ± 20% 1.8mm
JW ± 20% 1.8mm
P ± 10% 55.4mm
R max 26.5mm
S nom 16.5mm
T ± 20% 1mm
Weight/Unit 0.004kg
∅H max b 14.2mm
∅H min a 31mm
∅J max b 6.6mm
∅J min. a 31mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-01-013-5840
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660194399
Packaging 1 - Height (m) 0.003m
Packaging 1 - Length (m) 0.016m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.004kg
Packaging 1 - Width (m) 0.010m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
