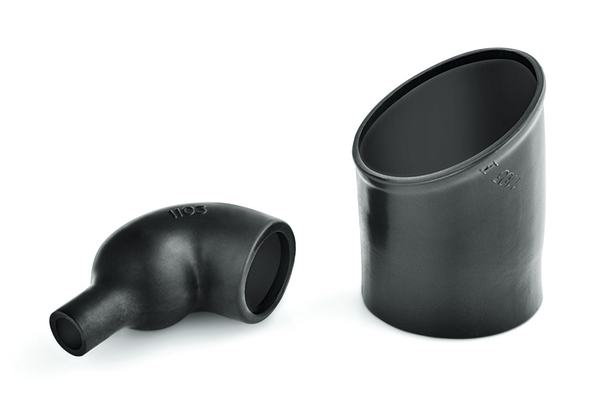

Helashrink 1100 Series, with rib
Art.-No. 411-04044 | 1104-4-GW24-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor for strain relief

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1104-4-GW24
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in Bag
PART DESCRIPTION 1104-4-GW24-PO-X-BK
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, MIL style
Variant For plug
Angle 90°
Flexibility Semi rigid

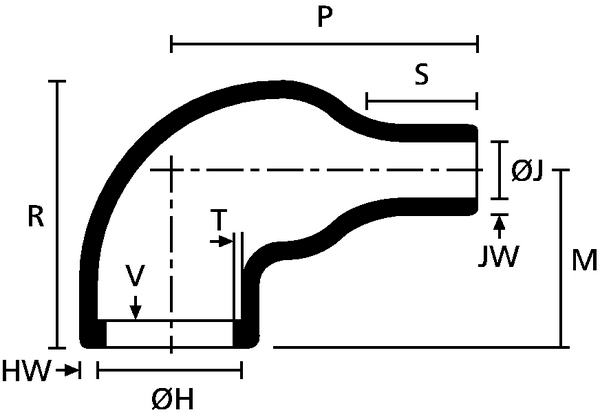

HW ± 20% 1.8mm
JW ± 30% 1.8mm
M nom 20.6mm
P ± 10% 35.6mm
R ± 10% 30.5mm
S nom 8.6mm
T ± 20% 1mm
V max 3.3mm
Weight/Unit 0.006kg

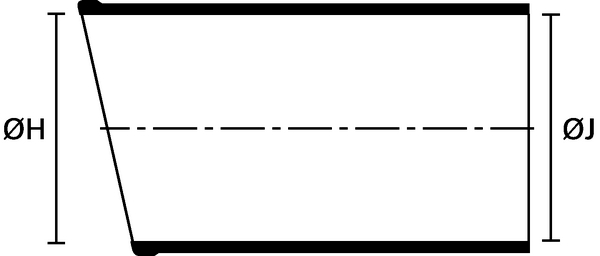

∅H max b 17.8mm
∅H min a 30.9mm
∅J max b 7.1mm
∅J min. a 30.9mm
Adhesive W24
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
Specifications
Tensile Strength 15MPa
Country of Origin GB
GTIN-13 / EAN 5022660408571
Packaging 1 - Height (m) 0.040m
Packaging 1 - Length (m) 0.160m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00077
Packaging 1 - Weight (kg) 0.006kg
Packaging 1 - Width (m) 0.120m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
