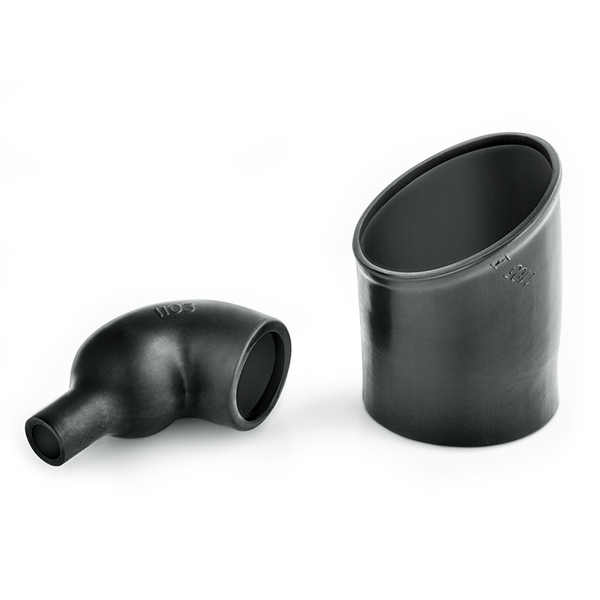

Right-Angle Shapes, MIL style

???product.artNr??? 411-04035

| 1104-4-J-PO-X-BK

|

Space saving right-angle shapes used here in a military application.

Used in conjunction with a circular grooved adaptor for strain relief

???myht.addtowatchlist???

???product.orderrequest.link???

???product.findnearby???

???downloads???

???product.productgroup.title???:

Right-Angle Shapes, MIL style

Base Data

???product.application???	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1104-4-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1104-4-J-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1104-4-J
UV-Stabilised	No
Variant	For plug
Weight/Unit	0.006kg

Product Dimensions


⌀H max b	17.8mm
⌀H min a	30.9mm
⌀J max b	7.1mm
⌀J min. a	30.9mm
Angle	90
Flexibility	Flexible
For Object Outside Diameter	20.42-28.28 mm
HW ± 20%	1.8mm
JW ± 30%	1.8mm
M nom	20.6mm
P ± 10%	35.6mm
R ± 10%	30.5mm
S nom	8.6mm
T ± 20%	1mm
Tube Shape	Angle
V max	3.3mm

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-00-281-3926
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	19MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660408632
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.000768m³
Packaging 1 - Weight (kg)	0.006kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
