Right-Angle Shapes, MIL style
Art.-No. 411-06014 | 1106-4-B7-PO-X-BK |

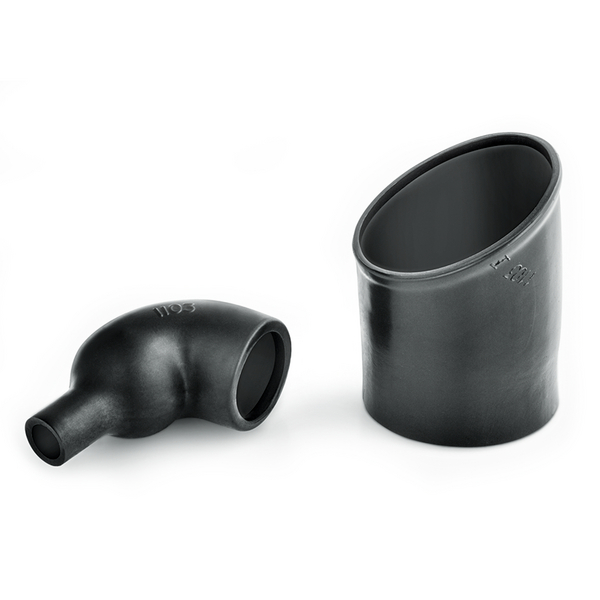

1108-4 supplied / fully recovered.

Space saving right-angle shapes used here in a military application.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1106-4-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1106-4-B7-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1106-4-B7
UV-Stabilised	No
Variant	For plug
Weight/Unit	0.002kg

Product Dimensions


⌀H max b	10.4mm
⌀H min a	23.3mm
⌀J max b	5.6mm
⌀J min. a	23.3mm
Angle	90
Flexibility	Semi rigid
HW ± 20%	1.3mm
JW ± 30%	1.3mm
M nom	15.2mm
P ± 10%	20.3mm
R ± 10%	22.9mm
S nom	5.8mm
T ± 20%	1mm
V max	3.3mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-654-1127
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	13MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660409301
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00032m³
Packaging 1 - Weight (kg)	0.002kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
