Right-Angle Shapes, MIL style
Art.-No. 411-09012 | 1109-4-G-PO-X-BK |

1108-4 supplied / fully recovered.

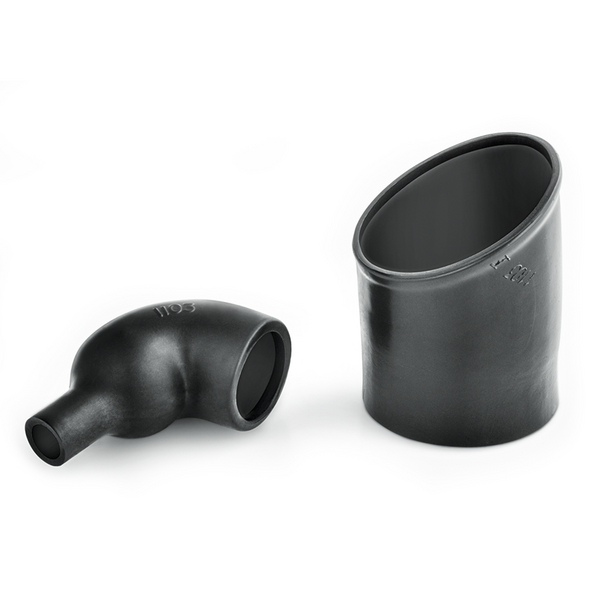

Space saving right-angle shapes used here in a military application.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1109-4-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1109-4-G-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1109-4-G
UV-Stabilised	No
Variant	For plug
Weight/Unit	0.058kg

Product Dimensions


⌀H max b	44.5mm
⌀H min a	66mm
⌀J max b	20.3mm
⌀J min. a	66mm
Angle	90
Flexibility	Semi rigid
HW ± 20%	3.8mm
JW ± 30%	3.8mm
P ± 10%	97.5mm
R ± 10%	66mm
S nom	40.6mm
T ± 10%	2mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	15MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660689932
Packaging 1 - Height (m)	0.080m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00192m³
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
