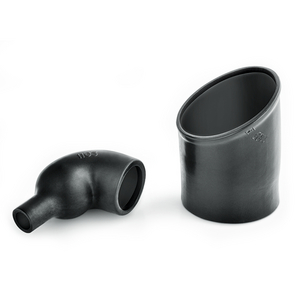

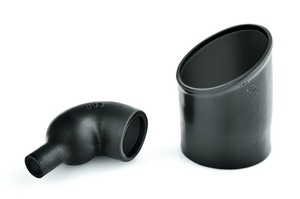

Right-Angle Shapes, VG-Style
Art.-No. 411-54011 | 1154-4-GW8-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor
  • Provides strain relief and an environmental seal

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1154-4-GW8
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1154-4-GW8-PO-X-BK
Pack Cont. 1pc.
Package Content packed in pcs.
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG-Style
Shrink Ratio up to 3:1
Type 1154-4-GW8
Variant For plug
Angle 90
Flexibility Semi rigid
HW ± 20% 1.5mm
JO ± 10% 12mm
JW ± 20% 0.8mm
JW ± 30% 0.8mm
M nom 19mm
P ± 10% 32mm
P ± 20% 41.0mm
R ± 10% 27mm
S nom 12mm
S ± 10% 20mm
T ± 10% 1mm
T ± 20% 1.0mm
V max 3.3mm
V ± 10% 3mm
V ± 20% 1mm
Weight/Unit 0.0045kg
∅H max b 14.5mm
∅H min a 30mm
∅J max b 6mm
∅J min. a 30mm
Adhesive W8
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Tensile Strength 15MPa
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660415395
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00056
Packaging 1 - Weight (kg) 0.004501kg
Packaging 1 - Width (m) 0.1m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
