Right-Angle Shapes, VG-Style
Art.-No. 411-55012 | 1155-4-GW24-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor
  • Provides strain relief and an environmental seal

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1155-4-GW24
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1155-4-GW24-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG-Style
Shrink Ratio up to 3:1
Type 1155-4-GW24
Variant For plug

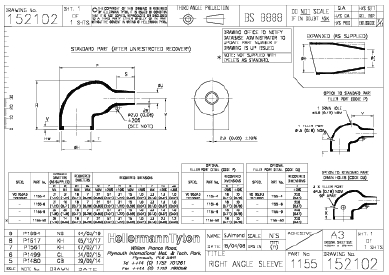

Angle 90
Flexibility Semi rigid
HW ± 20% 1.8mm
JO ± 10% 15mm
JW ± 20% 1mm
JW ± 30% 1mm
M nom 21mm
P ± 10% 40mm
R ± 10% 31mm
S nom 15mm
S ± 10% 31mm
T ± 10% 1mm
T ± 20% 1mm
V max 3.3mm
V ± 10% 3mm
Weight/Unit 0.007kg
∅H max b 18mm
∅H min a 31mm
∅J max b 7mm
∅J min. a 31mm
Adhesive W24
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-99-807-3068
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Tensile Strength 15MPa
Country of Origin GB
GTIN-13 / EAN 5022660415739
Packaging 1 - Height (m) 0.040m
Packaging 1 - Length (m) 0.120m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.007001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
