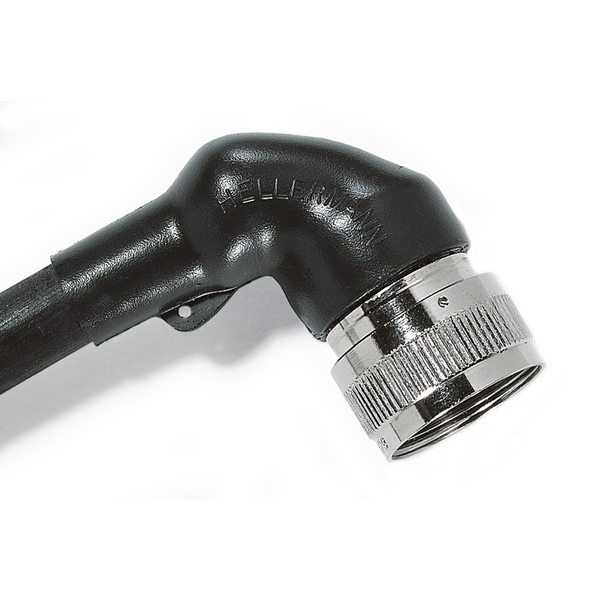

Right-Angle Shapes, VG-Style
Art.-No. 411-56016
| 1156-4-J-PO-X-BK
|
Copied
- Used in conjunction with a circular grooved adaptor
- Provides strain relief and an environmental seal
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | 1156-4-J |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 1156-4-J-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 1100 Series, with rib |
| Product Group | Right-Angle Shapes, VG-Style |
| Type | 1156-4-J |
| UV-Stabilised | No |
| Variant | For plug |
| Weight/Unit | 0.009kg |
| Dielectric Strength | 18kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Minimum Shrink Temperature | +135 °C |
| Nato number | 5970-14-387-6201, 5970-99-661-5818, 5970-01-208-8273, 5970-99-756-9996 |
| Operating Temperature | -55 °C to +150 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Tensile Strength | 19MPa |
