Right-Angle Shapes, VG-Style : 1157-4-G

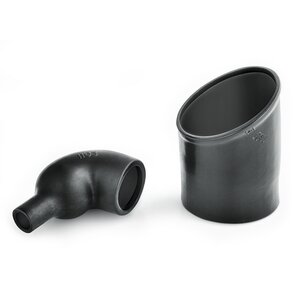

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X, up to 3:1, Article number: 411-57480
Features
- Used in conjunction with a circular grooved adaptor
- Provides strain relief and an environmental seal
Certifications & Approvals
Application
Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications
Helashrink 1100 Series, with rib is suitable for following markets and industries
More products in this product group
Right-Angle Shapes, VG-Style >| Application Tool | H6100, E4500 |
| Colour | Black (BK) |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | 1157-4-G-PO-X-BK |
| Product Family | Helashrink 1100 Series, with rib |
| Product Group | Right-Angle Shapes, VG-Style |
| Short Description | Right-Angle Shape VG-Style with Rib for Plugs black, PO-X, up to 3:1 |
| Shrink Ratio | up to 3:1 |
| Type | VG95343T06E005A |
| Variant | For plug |
|
|
|
| Angle | 90° |
| Flexibility | Semi rigid |
| HW ± 20% | 2.0mm |
| JW ± 20% | 1.0mm |
| JW ± 30% | 1.0mm |
| M nom | 30.0mm |
| P ± 10% | 71.0mm |
| R ± 10% | 45.0mm |
| S nom | 16.0mm |
| T ± 10% | 1.7mm |
| T ± 20% | 1.7mm |
| V max | 3.3mm |
| ∅H max b | 28.5mm |
| ∅H min a | 43.0mm |
| ∅J max b | 10.0mm |
| ∅J min. a | 43.0mm |
| Designation as per VG-Norm | VG 95343 T06 E 005 A |
| Dielectric Strength | 14 kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous good | No |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Operating Temperature - °C | -75 °C to +150 °C |
| Specifications |
|
| Specifications | DEF STAN 59-97/3, VG 95343-6:2009-12 |
| Tensile Strength | 15MPa |
|
|
|
| EAN / GTIN | 5022660635137 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00065m³ |
| Packaging 1 - Weight (kg) | 0.014kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0648m³ |
| Packaging 3 - Weight (kg) | 4.7kg |
| Packaging 3 - Width (m) | 0.4m |
| Weight | 0.014kg |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
