3-Way Outlet Shapes, VG style
Art.-No. 403-10010 | 310-1-H-PO-X-BK |

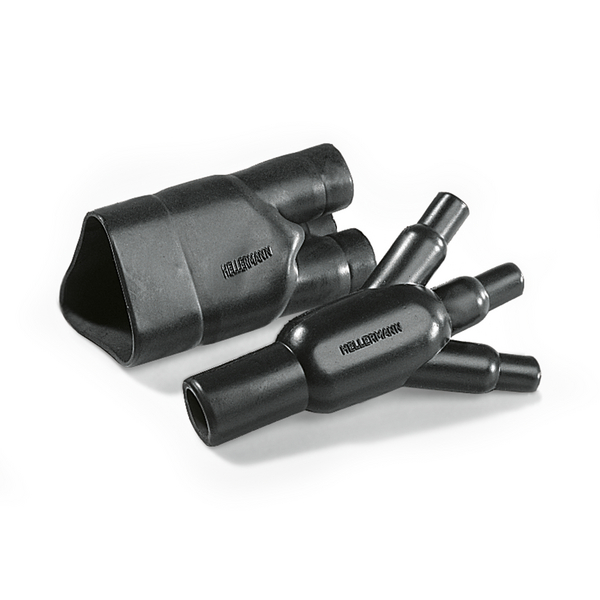

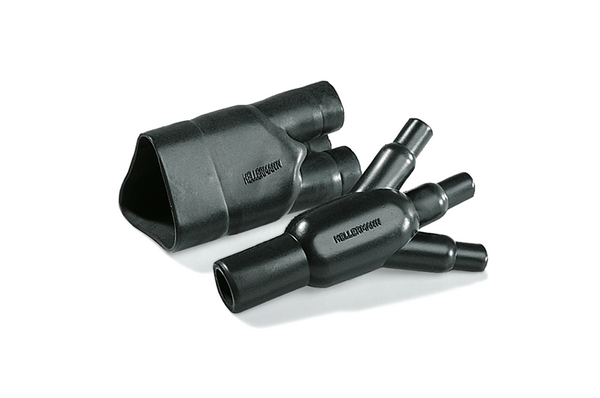

304-1-G supplied / fully recovered.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Cable strain relief and mechanical protection at harness transition points
All outlets clearly marked to aid orientation during installation

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

3-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	310-1-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	310-1-H-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 300 Series
Product Group	3-Way Outlet Shapes, VG style
Type	310-1-H
UV-Stabilised	No
Variant	For 3-core cables

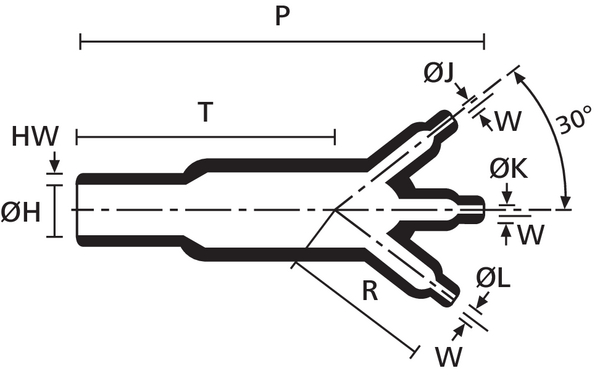

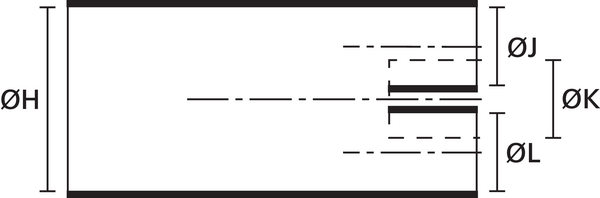

Product Dimensions


⌀H max b	19mm
⌀H min a	38.5mm
⌀J max b	10mm
⌀J min. a	19mm
⌀J/K/L max. b	10mm
⌀J/K/L min. a	19mm
⌀K max. b	10mm
⌀K min. a	19mm
Flexibility	Flexible
HW ± 20%	3mm
JW ± 30%	2.0mm
P ± 10%	135mm
R ± 10%	74mm
S ± 10%	74mm
T ± 10%	62mm
W ± 20 %	2mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Halogen-free	Yes
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +105 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	10MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660693137

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
