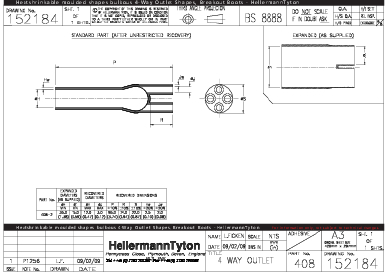

4-Way Outlet Shapes, Breakout Boots 408-2-B8W2
Helashrink 400 Series, in line, low voltage, Article number: 404-08022
Features
- Easy, time-saving insulation of cable branch point where it splits into single wires
- Made of tough, cross-linked, Polyolefin
- Adhesive is applied to relieve mechanical tension in cable harnesses
Certifications & Approvals
Application
Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection.
Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.
Helashrink 400 Series, in line, low voltage is suitable for following markets and industries
-
![Electronics Industry]()
Electronics Industry
-
![Aerospace Industry]()
Aerospace Industry
-
![Defence Industry]()
Defence Industry
-
![Electrical Installation]()
Electrical Installation
More products in this product group
4-Way Outlet Shapes, Breakout Boots >| Application Tool | H5002, H5004, E4500 |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | 4-Way Outlet Shape in line for Low Voltage black, PO-X, up to 3:1 |
| Pack Cont. | 1pc. |
| Package Quantity per | Bag |
| PART DESCRIPTION | 408-2-B8W2-PO-X-BK |
| Product Family | Helashrink 400 Series, in line, low voltage |
| Product Group | 4-Way Outlet Shapes, Breakout Boots |
| Shrink Ratio | up to 3:1 |
| Type | 408-2-B8W2 |
| Variant | For 4-core cables |
|
|
|
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 4.0mm |
| Flexibility | Semi rigid |
| HW ± 20% | 2.5mm |
| JW ± 20% | 2.0mm |
| P ± 10% | 95.0mm |
| R ± 10% | 24.0mm |
| Recov. ∅ d | 9.0mm |
| S nom | 22.0mm |
| S ± 10% | 22.0mm |
| Supplied ∅ D | 35.0mm |
| Wire Size Range (mm²) | 4.0-35.0mm |
| ∅H max b | 12.0mm |
| ∅H min a | 35.0mm |
| ∅J max b | 3.0mm |
| ∅J min. a | 15.0mm |
| Adhesive | W2 |
| Dielectric Strength | 15 kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous good | No |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Operating Temperature - °C | -55 °C to +100 °C |
| Specifications |
|
| Tensile Strength | 15MPa |
| EAN / GTIN | 5022660647673 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.095m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00012m³ |
| Packaging 1 - Weight (kg) | 0.021kg |
| Packaging 1 - Width (m) | 0.035m |
| Packaging 2 - Height (m) | 0.1m |
| Packaging 2 - Length (m) | 0.8m |
| Packaging 2 - Qty | 100 |
| Packaging 2 - Type | Bag |
| Packaging 2 - Volume (m³) | 0.0344m³ |
| Packaging 2 - Weight (kg) | 2.1kg |
| Packaging 2 - Width (m) | 0.43m |
| Weight | 0.021kg |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
