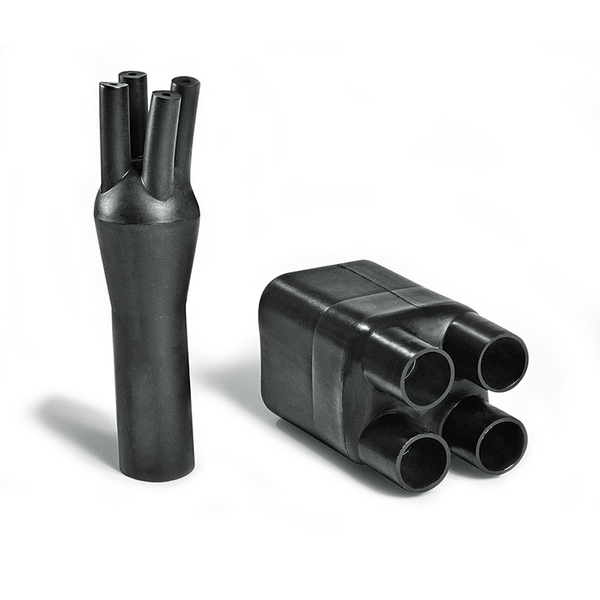

Helashrink 400 Series, in line, low voltage
Art.-No. 404-08026 | 408-2-G-PO-X-BK Details

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Made of tough, cross-linked, Polyolefin
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 408-2-G
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in Bag
PART DESCRIPTION 408-2-G-PO-X-BK
Product Family Helashrink 400 Series, in line, low voltage
Product Group 4-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Variant For 4-core cables
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 4.0mm
Flexibility Semi rigid
HW ± 20% 2.5mm
JW ± 20% 2mm
P ± 10% 95mm
R ± 10% 24mm
Recov. ∅ d 9.0mm
S nom 22mm
S ± 10% 22mm
Supplied ∅ D 35.0mm
Wire Size Range (mm²) 4.0-35.0mm
∅H max b 12mm
∅H min a 35mm
∅J max b 3mm
∅J min. a 15mm
Dielectric Strength 15kV/mm
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660461354
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
