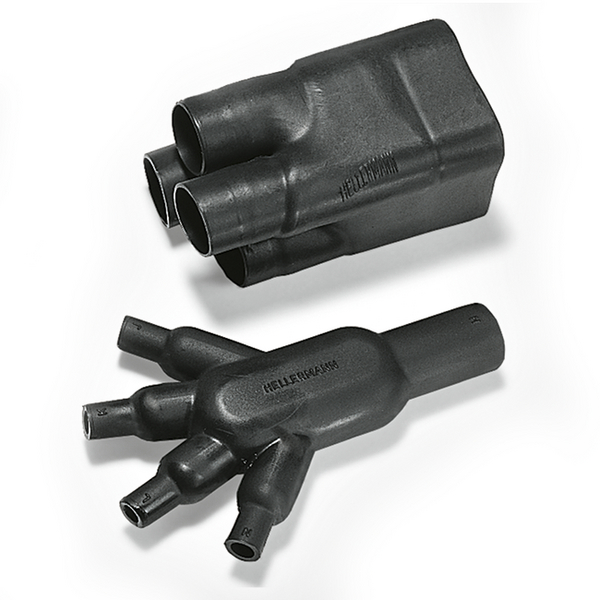

4-Way Outlet Shapes, VG style
Art.-No. 404-11019 | 411-1-G-PO-X-BK Details

  • 4-way outlet shape
  • Cable sealing, strain relief and mechanical protection

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 411-1-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 411-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 400 Series
Product Group 4-Way Outlet Shapes, VG style
Type 411-1-G
Variant For 4-core cables
Flexibility Semi rigid
HW ± 30% 2mm
JW ± 30% 1mm
P ± 10% 71mm
P ± 15%=overall length 71mm
R nom 36mm
R ± 10% 36mm
S nom 32mm
S ± 10% 32mm
T ± 10% 36mm
∅H max b 10mm
∅H min a 19mm
∅J max b 5.5mm
∅J min. a 9.5mm
∅J/K/L/N max. b 5.5mm
∅J/K/L/N min. a 9.5mm
∅K max. b 5.5mm
∅K min. a 9.5mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-99-734-9155, 5970-12-302-3940
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660461743
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
