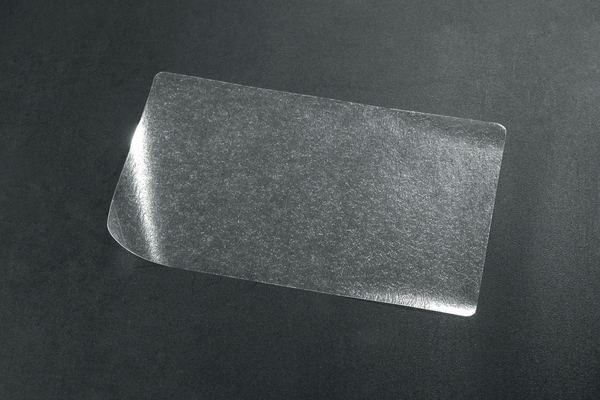

Protective laminate HELATAG, transparent, 11.43x43.18mm
Art.-No. 596-38321 | TAG0638TL2-323-CL Details

  • High temperature transparent material
  • Ideal as a protective laminate or as a printed label
  • The barrier label needs to overlap the covered label
  • Survives 5 years external weathering in central European climate

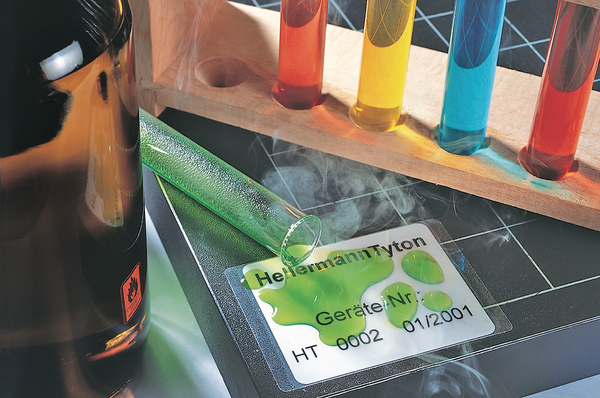

  • Provides additional protection against chemicals for the underlying label
Show more

Request your individual offer now

Application Protective laminates are used for the additional protection of printed type labels, for example in the automotive sector and for other outdoor installations. The protective laminates are also used if the contours of a label, for example on glass surfaces or backlit objects, should not be visible (no-label look).
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum.
Colour Transparent (CL)
Fixation Method Stick
Material Type 323, Polyvinylidene Fluoride, transparent (323)
Mech. Material Properties use as protective over-laminate or clear printable label
PART DESCRIPTION TAG0638TL2-323-CL
Pack Cont. 5000pcs.
Package Content packed in pcs.
Product Family Helatag 323 (White/Yellow-Clear) chemical resistant
Product Group Protective Laminates, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Protective Laminate for Thermal Transfer Printing 43.18x11.43 transparent
Type TAG0638TL2
With label space Yes
HR 45.72mm
Height (H) 11.43mm
Print Method thermal transfer print
Thickness (T) 25.0µm
Thickness of Foil 25
Thickness of foil test method ASTM D3652-83
VR 17.78mm
Weight/Unit 0.000138kg
Width (W) 43.18mm
Width of Liner (WL) 94.90mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free No
Hazardous Goods No
Initial tack 400g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +140 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shear strength 100h
Shear strength test method ASTM D3654
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications FTM 6 (according to DIN EN ISO 4892-2)
Specifications
UL OCD link Link
UL-File Number MH61377
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026213385
Labels per Row 2pcs.
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00265
Packaging 1 - Weight (kg) 0.690001kg
Packaging 1 - Width (m) 0.107m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.55m
Packaging 3 - Qty 60000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0515
Packaging 3 - Weight (kg) 8.78kg
Packaging 3 - Width (m) 0.39m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
