Label, white, thermal transfer print, 15.00x8.00mm, 25000pcs.
Art.-No. 596-12152 | TAG08-15TC-1216-WH Details

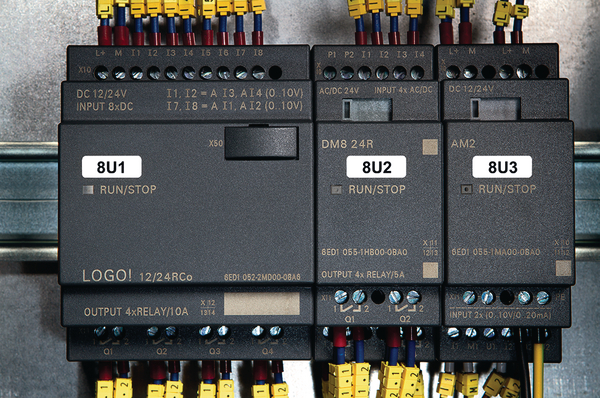

  • Suited to labelling electrical panels
  • White labels give excellent contrast
  • Also suitable for critical surfaces
  • Rounded corners ensure better long term durability of adhesion

Request your individual offer now

Application These labels are suitable for the permanent identification of components and preassembled units within electrical industry as well as asset identification. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. They can also be used in the design and setup as well as in the repair and expansion of control cabinets and control units.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Application Tool TT431, TT4030
Chem. Material Properties Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour White (WH)
Local order number TAG08-15TC-1216-WH
Material Type 1216, Polyethylene, white (1216)
Mech. Material Properties permanent adhesive, suitable for critical surfaces
PART DESCRIPTION TAG08-15TC-1216-WH
Pack Cont. 25000pcs.
Package Content packed in Reel
Product Family Helatag 1216 (White) for rough surfaces
Product Group Labels for control panel identification, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Labels for control panel identification, thermal transfer, 8x15 mm white
Type TAG08-15TC
HR 8.00mm
Height (H) 15.00mm
Print Method thermal transfer print
Thickness of Adhesive (TA) nom. 24µm
Thickness of Foil 105
Thickness of foil test method ISO 534
VR 17.78mm
Weight/Unit 0.000018kg
Width (W) 8.00mm
Width of Liner (WL) 85.00mm
Adhesive Acrylic
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Initial tack 17N
Initial tack FINAT FTM 9
Operating Temperature -30 °C to +80 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shear strength 10h
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026296425
Labels per Row 10pcs.
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.157m
Packaging 1 - Qty 25000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00265
Packaging 1 - Weight (kg) 0.450001kg
Packaging 1 - Width (m) 0.147m
Storage Temperature +15 °C to +25 °C
Storage conditions 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
