Label, tamper-evident, silver/transparent, thermal transfer print, 160.00x101.60mm, 250pcs.
Art.-No. 596-90000 | TAG101-160T1-SET-1251-CL/SR Details

  • 2-part label, delivered on reel together with the protective label
  • Designed for highly visible and rugged identification on trucks and trailers
  • Tamper-evident, when pulled off a checkered pattern will be visible as evident
  • High durability in outside use
  • Meets requirements of the KBA (Kraftfahrtbundesamt [German Federal Motor Transport Authority])

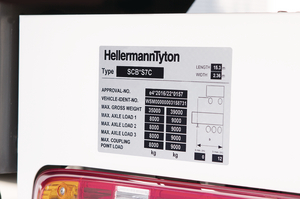

  • Particularly suitable as type label for vehicles
Show more

Request your individual offer now

e-Learning
Application These labels are primarily used for tamper-proof type label applications in the automotive and electrical industries. They are ideally suited for labelling flat surfaces, e.g. on vehicle frames and can be used as a replacement for conventional aluminium plates. The transparent protective laminate guarantees good resistance to dirt and abrasion and can be easily applied by hand.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Resistant to gasoline, mineral oils, greases, aliphatic solvents, weak acids, salts and alkalis.
Colour Silver (SR), Transparent (CL)
Key product features tamper-evident
Material Type 1251, Polyester, silver and Polyester, transparent (1251)
Mech. Material Properties Tamper-proof identification, leaves small checkboard traces.
PART DESCRIPTION TAG101-160T1-SET-1251-CL/SR
Pack Cont. 250pcs.
Package Content packed in Reel
Product Family Helatag 1251, 2 parts
Product Group Tamper-evident security labelling, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Tamper Evident Security Labels for Thermal Transfer Printing 101x160 mm silver/transparent
Type TAG101-160T1-SET
Height (H) 160.00mm
Print Method thermal transfer print
Thickness of Adhesive (TA) nom. 25µm
Thickness of Foil 63, 35
Thickness of foil test method ASTM D3652
VR 164.00mm
Weight/Unit 0.003kg
Width (W) 101.60mm
Width of Liner (WL) 105.80mm
Adhesive Acrylic
Curing Temperature from 0 °C (label), from +4 °C (laminate)
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shear strength 100
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Specifications German Federal Motor Transport Authority/technical bulletin 412-205
Ultimate adhesion 25N/m
Ultimate adhesion test method FINAT FTM 1
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026657400
Labels per Row 1pc.
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.288m
Packaging 3 - Qty 250
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Weight (kg) 0.88kg
Packaging 3 - Width (m) 0.178m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 25500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 110.76kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
