10/10/2024

Label, removable, yellow, thermal transfer print, 22.00x56.00mm, 2000pcs.
Art.-No. 596-12177 | TAG56-22TE-880-YE Details

  • Suited to labelling electrical panels
  • Where high label visibility is required
  • Partially suitable for critical surfaces
  • Rounded corners ensure better long term durability of adhesion
  • Easily remove or reposition labels as required
  • No sticky residue on removal
Show more

Request your individual offer now

e-Learning

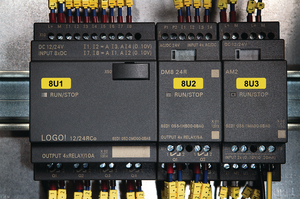

Application These labels are suitable for the permanent identification of components and preassembled units within electrical industry as well as asset identification. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. They can also be used in the design and setup as well as in the repair and expansion of control cabinets and control units. Due to the structure of the vinyl label they are suitable for rougher surfaces.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Good resistance to water, oil and most solvents.
Colour Yellow matt (MTYE)
Key product features removable
Material Type 880, Vinyl (880)
Mech. Material Properties Adhesive removable without traces
PART DESCRIPTION TAG56-22TE-880-YE
Pack Cont. 2000pcs.
Package Content packed in Reel
Product Family Helatag 880, removable
Product Group Labels for control panel identification, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Removable Labels for control panel identification 56x22 mm yellow

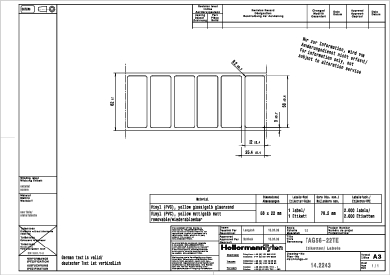

Type TAG56-22TE
Height (H) 22.00mm
Print Method thermal transfer print
Thickness (T) 80µm
Thickness of Foil 80
Thickness of foil test method ASTM D3652-83
VR 25.40mm
Weight/Unit 0.000265kg
Width (W) 56.00mm
Width of Liner (WL) 62.00mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 200g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026470962
Labels per Row 1pc.
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 2000
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00223
Packaging 1 - Weight (kg) 0.53kg
Packaging 1 - Width (m) 0.09m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
