Fittings for metallic conduits with liquid-tight cover : LTS16-SMC-M20

Swivel Thread Compression Fitting IP68 ø16mm M20Article number: 166-32302

HelaGuard LTS-SMC Swivel Compression Fitting.

Features

  • Multipart compression fitting including polyamide seal
  • Provides excellent tensile strength
  • External thread swivels about main body even after tightening

Certifications & Approvals

Application

External thread, nickel plated brass with internal plated steel circlip.
Fulfils IP66, IP67, IP68 and IP69k.

Colour Metal (ML)
Metallic Fitting Type Compression, straight
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION LTS16-SMC-M20-NPB/PA6/PS-SR
Product Family LTS-SMC Swivel Thread Compression Fitting, IP68
Product Group Fittings for metallic conduits with liquid-tight cover
Short Description Swivel Thread Compression Fitting IP68 ø16mm M20
Thread type metric
Type of connection Thread
Variant Straight

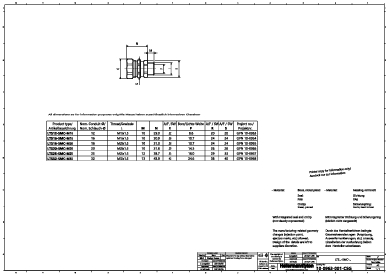

A/F Nut (A/F3) 26mm
A/F Thread (A/F2) 24mm
Height (H) 26mm
Length (L) 41.0mm
Lowest inner diameter 10.7mm
Min. Bore Size (B) 10.7mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Thread Length (TL) 10.0mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP66, IP67, IP68, IP69k
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
Operating Temperature - °C -50 °C to +135 °C
Specifications
GTIN-13 / EAN 4031026308258
Packaging 1 - Height (m) 0.026m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00079
Packaging 1 - Weight (kg) 0.500001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001180
