Metallic conduits with plastic coating LFHCS25

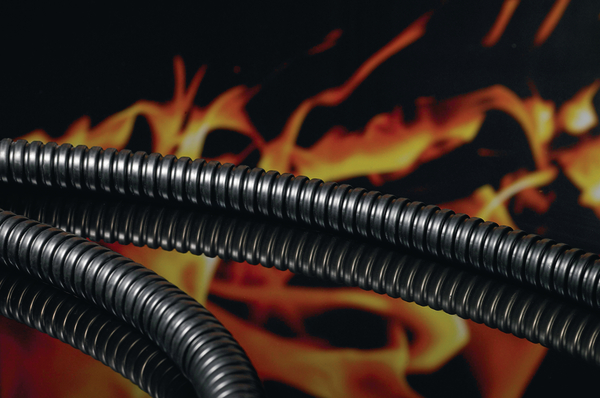

LFHCS Galvanised Steel Conduit, LFH Coating, Article number: 166-30903
Features
- Self-extinguishing to UL94 V0
- Low smoke, low toxicity
- High compression, tensile and impact strength
- Very flexible
- Halogen, sulphur and phosphorus free
Certifications & Approvals
Application
Rail industry, underground stations, tunnels, public buildings, wherever high fire protection is required.
LFHCS Galvanised Steel Conduit, LFH Coating is suitable for following markets and industries
-
Electronics Industry
-
Rail Transportation Sector
More products in this product group
Metallic conduits with plastic coating >| Colour | Black (BK) |
| Conduit Model | Metallic with plastic coating |
| Description Short (BMEcat) (max. 150 characters) | LFHCS Galvanised Steel Conduit with LFH Coating black ø25mm reel 25m |
| Features and Benefits | Flexible galvanised steel conduit with highly flame resistant, low smoke and low toxicity coating. |
| GLOBAL PART DESCRIPTION | LFHCS25-GS/PO-BK |
| Pack Cont. | 25m |
| Package Quantity per | Reel |
| Product Family | LFHCS Galvanised Steel Conduit, LFH Coating |
| Product Group | Metallic conduits with plastic coating |
| Diameter (D) | 20.9mm |
| Inside Ø (ID) | 20.9mm |
| Length (L) | 25m |
| Min. Bending Radius (R) | 55mm |
| Nominal ∅ | 25mm |
| Nominal ∅ (imperial) | 1" |
| Outside Ø (OD) | 26.0mm |
| Weight | 420g/m |
| Electrical characteristics | Not specified |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN61386 Classification | with compression fittings |
| Flammability | UL 94 V0 |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Material | Galvanised Steel (GS), Polyolefin (PO) |
| Operating Temperature - °C | -25 °C to +90 °C, intermittent +100 °C |
| Specifications |
|
| Specifications | BS EN 61386-23:2004 |
| EAN / GTIN | 4031026306858 |
| Packaging 1 - Height (m) | 0.179m |
| Packaging 1 - Length (m) | 0.403m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.02907m³ |
| Packaging 1 - Weight (kg) | 10.5kg |
| Packaging 1 - Width (m) | 0.403m |
| Reel Length | 25m |
| Weight | 10.5kg |
| ETIM 5.0 | EC001179 |
| ETIM 6.0 | EC001179 |
