Fitting for metallic conduits, nom⌀20mm, PG16, metal, 10pcs.
Art.-No. 166-31410 | PCS20-FMC-PG16-NPB/PA6-ML |

Copied
HelaGuard PCS-FMC Compression Fitting.
HelaGuard compression fitting, straight with fixed external thread

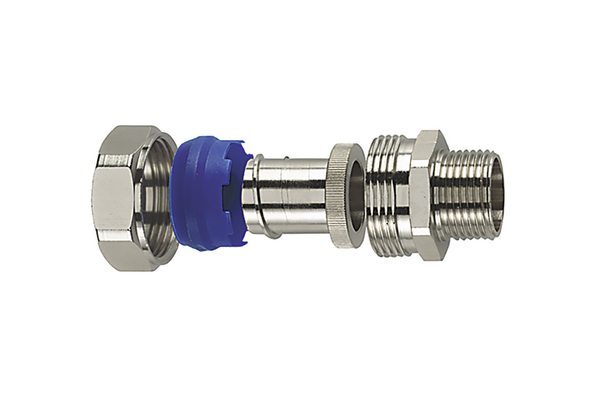

    • Multipart compression fitting including elastomeric seal
    • Provides excellent tensile strength
    • Can be used for knockouts or threaded entries as fitting rotates until tightened
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application External thread, nickel plated brass.
    Fulfils IP65.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    Metallic Fitting Type Compression, straight
    PART DESCRIPTION PCS20-FMC-PG16-NPB/PA6-ML
    Package Content 10pcs.
    Package Content packed in Bag
    Product Family PCS-FMC Fixed Thread Compression Fitting, IP65
    Product Group Fittings for metallic conduits with plastic coating
    Short Description Fitting for metallic conduit with Fixed Thread Compression Fitting IP65 ø20mm PG16
    Thread type PG
    Type PCS20-FMC-PG16
    Type of connection Thread
    Variant Straight
    Weight/Unit 0.05kg

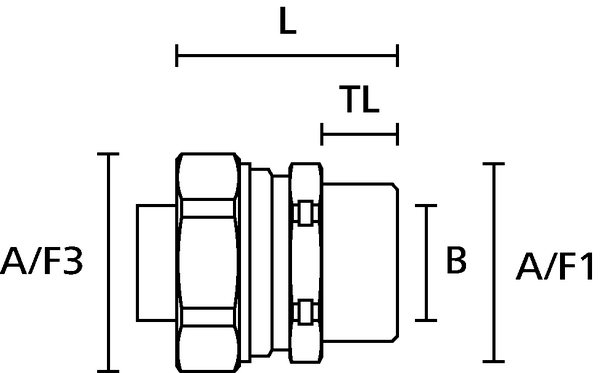

    A/F Nut (A/F3) 29mm
    Height (H) 26.0mm
    Length (L) 32.5mm
    Lowest inner diameter 15.3mm
    Min. Bore Size (B) 15.3mm
    Nominal ⌀ 20mm
    Nominal ⌀ (imperial) 0.81"
    Thread Length (TL) 11.0mm
    Thread Size PG16
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026307541
    Packaging 1 - Height (m) 0.029m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0008816m³
    Packaging 1 - Weight (kg) 0.500001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
