Fittings for metallic conduits : SC16-SM-M20

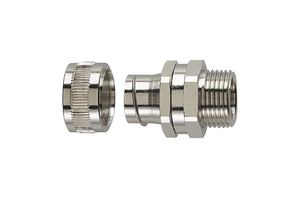

Fitting for metallic conduits with Swivel External Thread ø16mm M20, Article number: 166-30403
Features
- Multi-part metallic-fitting of shell and body with external thread
- External thread swivels about main body
- Provides tight, reliable hold of conduit
- Can be secured with locknut
Certifications & Approvals
Application
Swivel external thread, nickel plated brass.
SC-SM Swivel External Thread is suitable for following markets and industries
More products in this product group
Fittings for metallic conduits >| Colour | Metal (ML) |
| Features and Benefits | Swivel external thread, nickel plated brass. |
| Metallic Fitting Type | Standard |
| Pack Cont. | 10pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | SC16-SM-M20-ST/NPB-ML |
| Product Family | SC-SM Swivel External Thread |
| Product Group | Fittings for metallic conduits |
| Short Description | Fitting for metallic conduits with Swivel External Thread ø16mm M20 |
| Thread type | metric |
| Type of connection | Thread |
| Variant | Straight |
| A/F Thread (A/F2) | 22mm |
| Height (H) | 22.0mm |
| Length (L) | 34.2mm |
| Lowest inner diameter | 11.5mm |
| Min. Bore Size (B) | 11.5mm |
| Nominal ∅ | 16mm |
| Nominal ∅ (imperial) | 5/8" |
| Thread Length (TL) | 10.0mm |
| Thread Size | M20 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP40 |
| Material | Steel (ST), Nickel Plated Brass (NPB) |
| Operating Temperature - °C | -100 °C to +300 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026306353 |
| Packaging 1 - Height (m) | 0.022m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00067m³ |
| Packaging 1 - Weight (kg) | 0.5kg |
| Packaging 1 - Width (m) | 0.16m |
| Weight | 0.5kg |
| ETIM 6.0 | EC001180 |
| ETIM 7.0 Key | EC001180 |
