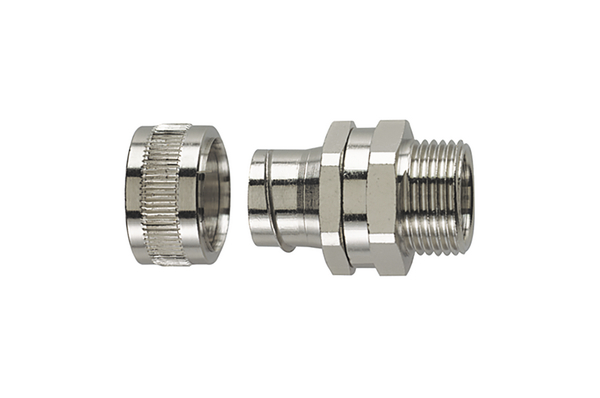

Fitting for metallic conduits with Swivel External Thread
Art.-No. 166-30410 | SC10-SM-PG7-NPB/PS-ML Details

  • Multi-part metallic-fitting of shell and body with external thread
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Request your individual offer now

Application Swivel external thread, nickel plated brass with internal plated steel circlip.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Plated Steel (PS)
Metallic Fitting Type Standard
PART DESCRIPTION SC10-SM-PG7-NPB/PS-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family SC-SM Swivel External Thread
Product Group Fittings for metallic conduits
Short Description Fitting for metallic conduits with Swivel External Thread
Thread type PG
Type SC10-SM-PG7
Type of connection Thread
Variant Straight

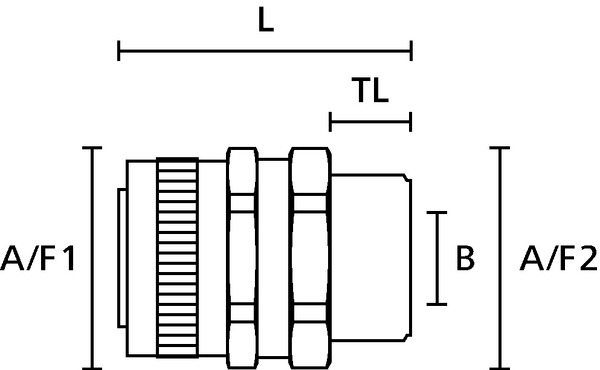

A/F Thread (A/F2) 13mm
Height (H) 13mm
Length (L) 30.2mm
Lowest inner diameter 5.6mm
Min. Bore Size (B) 5.6mm
Nominal ∅ 10mm
Nominal ∅ (imperial) 0.38"
Thread Length (TL) 8.0mm
Thread Size PG7
Weight/Unit 0.019214kg
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026306421
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.192141kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
