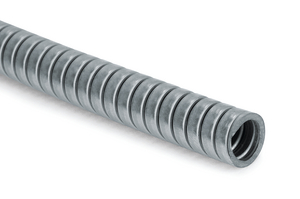

Galvanised Steel Conduit ø10mm reel 50m
Art.-No. 166-30100 | SC10-GS-ML Details

  • High compression, tensile and impact strength
  • Very flexible
Package size

Request your individual offer now

Application General purpose flexible steel conduit offers high mechanical protection and is typically used in machines, plants, underfloor wiring, data cabling and protection of hydraulic or pneumatic hoses.
Application Tool CONCLAMP
Colour Metal (ML)
Conduit Model Metallic
Local order number SC10-GS-ML-50M
Material Galvanised Steel (GS)
Pack Cont. 50m
Package Content packed in Reel
PART DESCRIPTION SC10-GS-ML
Product Family SC Galvanised Steel Conduit
Product Group Metallic conduits
Short Description Galvanised Steel Conduit ø10mm reel 50m
Bending Radius min. (R) 25mm
Diameter (D) 6.8mm
Inside Ø (ID) 6.8mm
Length (L) 50m
Nominal ∅ 10mm
Nominal ∅ (imperial) 0.38"
Outside Ø (OD) 9.1mm
Weight 110g/m
Weight/Unit 0.1144kg
CE Certification Yes
Electrical characteristics Not specified
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 44564040310
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026305851
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 50
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.01188
Packaging 1 - Weight (kg) 5.72kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Type Carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 327.44kg
Packaging 4 - Width (m) 0.8m
Reel Length 50m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
