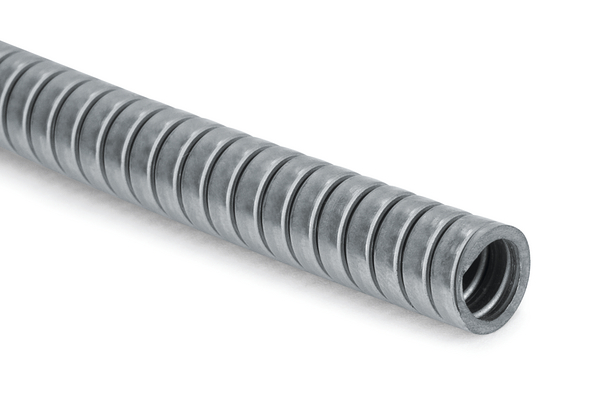

Galvanised Steel Conduit ø20mm reel 25m
Art.-No. 166-30103 | SC20-GS-ML Details

  • High compression, tensile and impact strength
  • Very flexible
Package size

Request your individual offer now

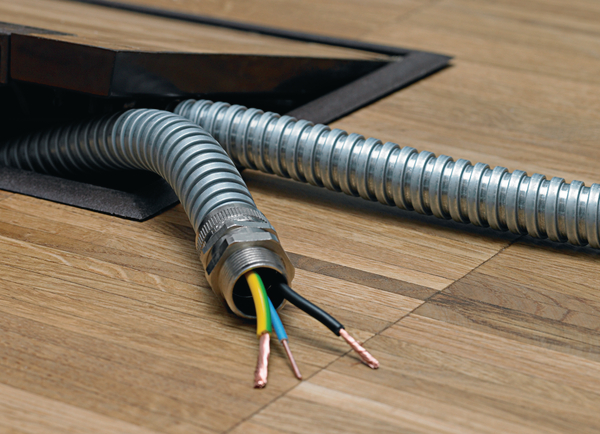

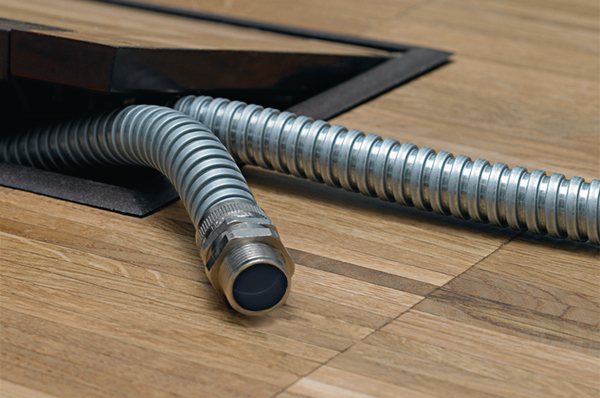

Application General purpose flexible steel conduit offers high mechanical protection and is typically used in machines, plants, underfloor wiring, data cabling and protection of hydraulic or pneumatic hoses.
Application Tool CONCLAMP
Colour Metal (ML)
Conduit Model Metallic
Local order number SC20-GS-ML-25M
Material Galvanised Steel (GS)
PART DESCRIPTION SC20-GS-ML
Pack Cont. 25m
Package Content packed in Reel
Product Family SC Galvanised Steel Conduit
Product Group Metallic conduits
Short Description Galvanised Steel Conduit ø20mm reel 25m
Type SC20
Bending Radius min. (R) 45mm
Diameter (D) 16.8mm
Inside Ø (ID) 16.9mm
Length (L) 25m
Nominal ∅ 20mm
Nominal ∅ (imperial) 0.81"
Outside Ø (OD) 20.6mm
Weight 295g/m
Weight/Unit 0.2704kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 44564040410
Electrical characteristics Not specified
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026305882
Packaging 1 - Height (m) 0.18m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0196
Packaging 1 - Weight (kg) 6.76kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Type Carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 750
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 255.68kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
