Fittings for metallic conduits and metallic overbraid SCSB40-FM-M40

SCSB-FM Fixed External Thread, Article number: 166-34606

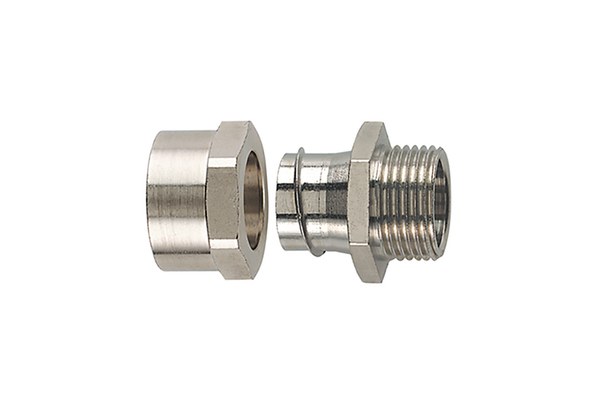

HelaGuard SCSB-FM Fixed External Thread.

Features

  • Two-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Fixed external thread, nickel plated brass.

SCSB-FM Fixed External Thread is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits and metallic overbraid with Fixed External Thread ø40mm M40
Features and Benefits Fixed external thread, nickel plated brass.
GLOBAL PART DESCRIPTION SCSB40-FM-M40-NPB-ML
Metallic Fitting Type Standard
Pack Cont. 1pc.
Package Quantity per Bag
Product Family SCSB-FM Fixed External Thread
Product Group Fittings for metallic conduits and metallic overbraid
Thread type metric
Type of connection Thread
Variant Straight

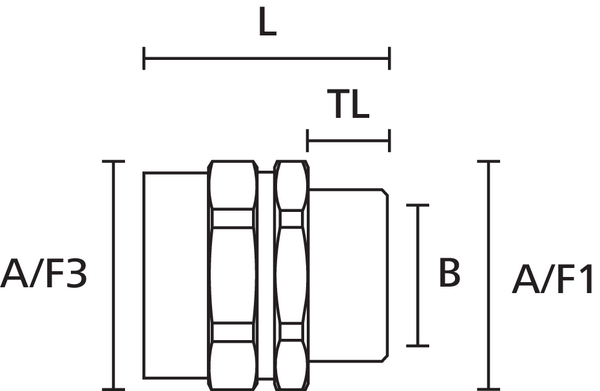

A/F Nut (A/F3) 48mm
Length (L) 42.8mm
Min. Bore Size (B) 34.6mm
Nominal ∅ 40mm
Nominal ∅ (imperial) 1-9/16"
Thread Length (TL) 14.0mm
Thread Size M40
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP40
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026309309
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00146
Packaging 1 - Weight (kg) 0.16kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.368m
Packaging 2 - Length (m) 0.584m
Packaging 2 - Qty 1
Packaging 2 - Type Bag
Packaging 2 - Volume (m³) 0.083
Packaging 2 - Weight (kg) 0.98kg
Packaging 2 - Width (m) 0.386m
Weight 0.16kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
