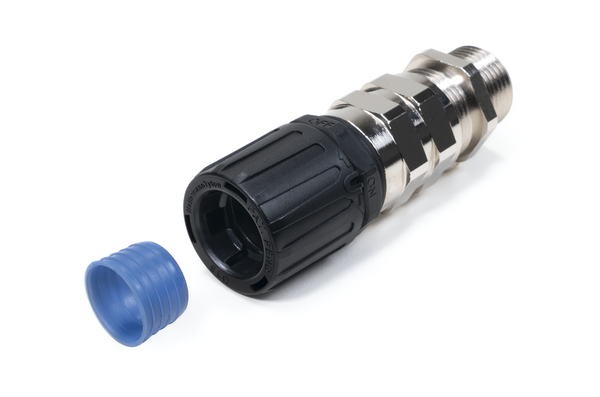

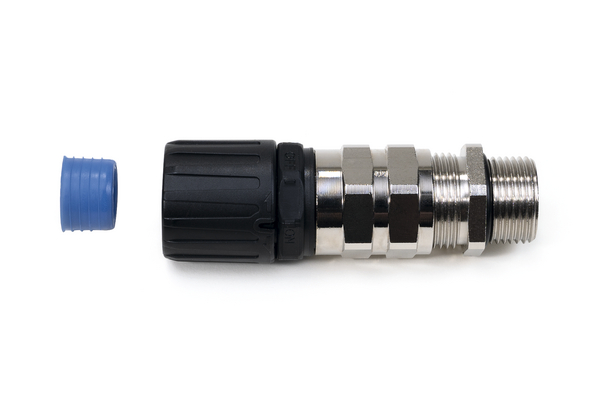

Straight Fitting with Strain Relief and Cable Seal IP68 ø13mm M16 black
Art.-No. 166-22100 | HGL13-SCG-M16-PA66/NPB/TPE-BK Details

  • Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
Show more

Request your individual offer now

Application Straight fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) Yes
Cable ∅ max 10mm
Cable ∅ min 4.5mm
Colour Black (BK)
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
PART DESCRIPTION HGL13-SCG-M16-PA66/NPB/TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family HGL-SCG Straight Cable Gland Fitting, IP68
Product Group Fittings with strain relief and cable seal
Short Description Straight Fitting with Strain Relief and Cable Seal IP68 ø13mm M16 black
Strain Relief Function (Y/N) Yes
Swivel Thread (Y/N) No
Thread type metric
Type HGL13-SCG-M16
Type of connection Snap-connection
Variant Straight

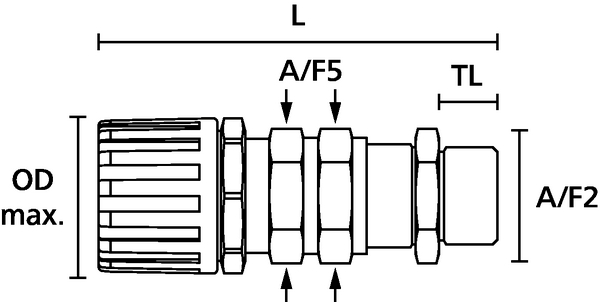

A/F Gland Body (A/F5) 20mm
A/F Thread (A/F2) 20mm
Height (H) 24mm
Length (L) 72mm
Min. Bore Size (B) 10mm
NW ∅ 10mm
Nominal ∅ 13mm
Nominal ∅ (imperial) 0.5"
Outside ∅ max (OD max.) 24mm
Thread Length (TL) 12mm
Thread Size M16
Weight/Unit 0.048kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP69k (in conjunction with HGL fittings), IP66, IP68, IP67
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026326061
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0011
Packaging 1 - Weight (kg) 0.480001kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
