Fittings with strain relief and cable seal HGL16-SCG-M16

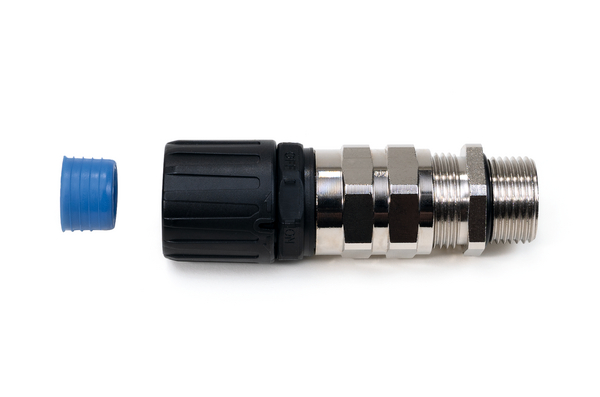

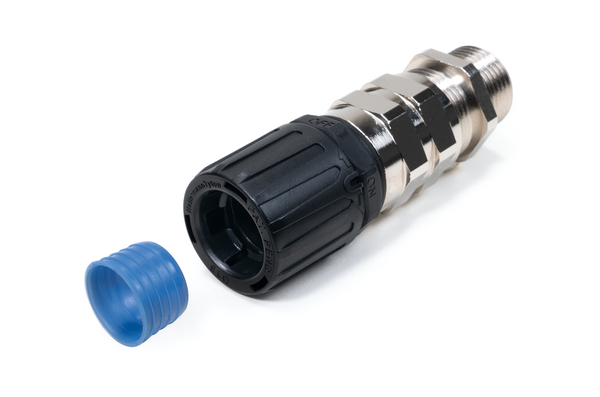

HGL-SCG Straight Cable Gland Fitting, IP68, Article number: 166-22101

HelaGuard HGL-SCG Straight Cable Gland Fitting, External Thread, IP68.

Features

  • Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Certifications & Approvals

Application

Straight fitting with cable seal and strain relief.
Fulfils IP66, IP67, IP68 and IP69k.

HGL-SCG Straight Cable Gland Fitting, IP68 is suitable for following markets and industries

Brass Thread (Y/N) Yes
Cable ∅ max 10mm
Cable ∅ min 4.5mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Straight Fitting with Strain Relief and Cable Seal IP68 ø16mm M16 black
Features and Benefits Straight fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k.
GLOBAL PART DESCRIPTION HGL16-SCG-M16-PA66/NPB/TPE-BK
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family HGL-SCG Straight Cable Gland Fitting, IP68
Product Group Fittings with strain relief and cable seal
Strain Relief Function (Y/N) Yes
Swivel Thread (Y/N) No
Thread type metric
Type of connection Snap-connection
Variant Straight

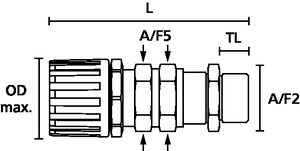

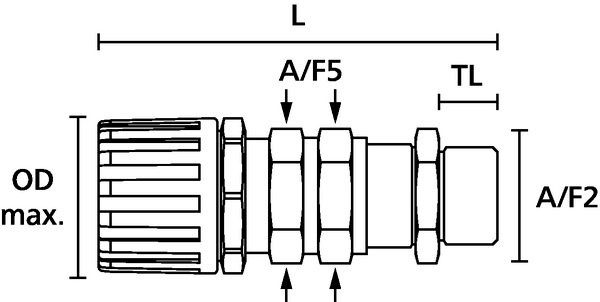

A/F Gland Body (A/F5) 20mm
A/F Thread (A/F2) 20mm
Height (H) 29mm
Length (L) 76mm
Min. Bore Size (B) 10mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
NW ∅ 12mm
Outside ∅ max (OD max.) 29mm
Thread Length (TL) 12mm
Thread Size M16
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP69k (in conjunction with HGL fittings), IP66, IP68, IP67
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications UL-Recognized
EAN / GTIN 4031026326078
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.002
Packaging 1 - Weight (kg) 0.5kg
Packaging 1 - Width (m) 0.16m
Weight 0.5kg
ETIM 5.0 EC001176
ETIM 6.0 EC001176
