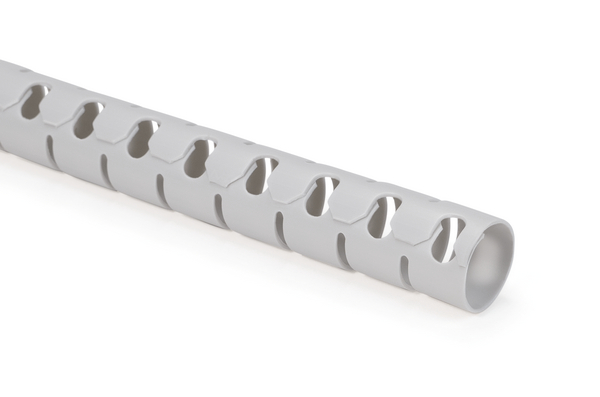

Helawrap Cable Cover : HWPP30
Cable cover 29 mm - 32 mm, PP, grey, 25m + toolArticle number: 161-64502
Features
- Ideal solution for bundling, protecting and fixing cables
- Quick and effortless to apply
- Good abrasion protection
- Special profile enables branching off cable at any point
- Can be removed and reapplied often
- Available in several colours and sizes
- Handy applicator tool included
Certifications & Approvals
Application
Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
More products in this product group
Helawrap Cable Cover >| Application 2 | Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential. |
| Application Tool | HAT30 |
| Colour | Grey (GY) |
| Content | 25m + tool |
| Pack Cont. | 25m |
| Package Quantity per | Bag |
| PART DESCRIPTION | HWPP30-PP-GY |
| Product Family | Helawrap HWPP |
| Product Group | Helawrap Cable Cover |
| Short Description | Cable cover 29 mm - 32 mm, PP, grey, 25m + tool |
| Type | HWEPP30GYX25M |
| Variant | Spiral Binding |
|
|
| Bundle ∅ max. | 32mm |
| Bundle ∅ min. | 29mm |
| Diameter (D) | 30.0mm |
| Length (L) | 25m |
| Nominal ∅ | 30mm |
| Nominal ∅ (imperial) | 1.19" |
| Pitch (P) | 24mm |
| Wall (WT) | 1.30mm |
| Wall (WT) (imperial) | 0.05" |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Intermittent Operating Temperature | +140°C |
| Material | Polypropylene (PP) |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature - °C | -60 °C to +110 °C, intermittent +140 °C |
| Specifications |
|
| Specifications | ECE R-118-03 Abschnitt 6 / Annex 6 (PB-58022-0018-02) |
|
|
|
| EAN / GTIN-13 | 5022660178252 |
| Packaging 1 - Height (m) | 0.335m |
| Packaging 1 - Length (m) | 0.385m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.04966m³ |
| Packaging 1 - Weight (kg) | 2.495kg |
| Packaging 1 - Width (m) | 0.385m |
| Packaging 3 - Height (m) | 0.335m |
| Packaging 3 - Length (m) | 0.385m |
| Packaging 3 - Qty | 25 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0497m³ |
| Packaging 3 - Weight (kg) | 2.995kg |
| Packaging 3 - Width (m) | 0.385m |
| Packaging 4 - Height (m) | 1.15m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 450 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.104m³ |
| Packaging 4 - Weight (kg) | 74.91kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 25m |
| Weight | 2.425kg |
| ETIM 6.0 | EC002604 |
| ETIM 7.0 Key | EC002604 |
