RapidNet 6 Port Category 5e : RN06U5E-CACAXX-10.0M

Cassette to Cassette, Article number: 859-05490

Features

  • Exceeds Category 5e performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Reduce installation times by up to 85%
  • Ideal solution for cabinet to cabinet installations
  • Backward compatible with Category 5 and voice

Application

The RapidNet cassette to cassette option is specifically designed for intercabinet installations that are common place in todays data centre. RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The 6 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation. The 6 port RapidNet cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into the standard RapidNet patch panel. The cassettes simply push into the panel, snapping in with a push down clip. A fully loaded panel presents the standard 24 ports in 1U of space.

Application 2 The RapidNet CAT5E solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5E, CAT5 and voice network infrastructure.
Colour Violet (VT)
Connector Type RJ45 UTP

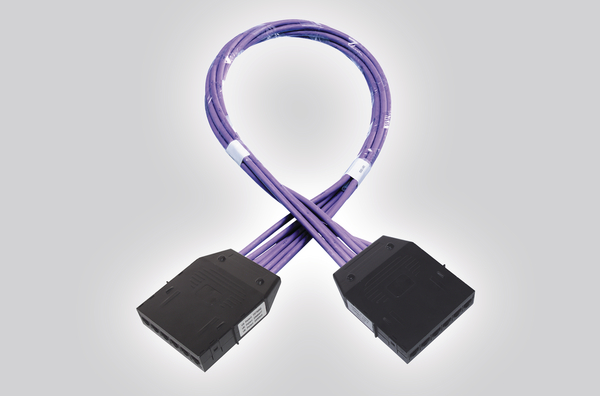

Description The RapidNet 6 Port Cassette to Cassette is pre-terminated with 6 RJ45 ports in each cassette, with 4 cassettes fitting into a standard RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The Cassette to Cassette option is specifically designed for inter-cabinet installations that are common in data centres and comms rooms.
Features and Benefits Meets all ISO/TIA Category 5E performance standards
Internet Customer Notice ** CAT5E Products will become obsolete on December 23rd 2020 - Please contact HT Data for more information **
Pack Cont. 10.0m
PART DESCRIPTION RN06U5E-CACAXX-10.0M
Performance Category Category 5E (Class D)
Port count 6
Product Family Cassette to Cassette
Product Group RapidNet 6 Port Category 5e
Technical Description The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 5e standards. All RapidNet Category 5e cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m.
Type RN06U5E-CACAXX-10.0M
Depth (D) 130mm
Height (H) 27mm
Length (L) 10.0m
Width (W) 107mm
ELV compliant Dir. Art. 4 (2) YES
Dimensions W x H x D 107 mm x 27 mm x 130 mm
EAN / GTIN 5022660938191
Packaging 1 - Qty 1
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
