14/12/2024

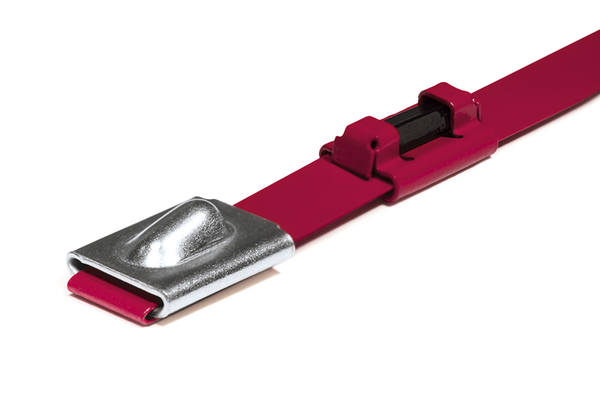

RFID cable tie, 13.56 MHz (HF), 201x7.9mm, ∅17-50mm, red, 50pcs.
Art.-No. 156-01167 | MBT8HFCRFID-SS316/SP-RD Details

  • MBT stainless steel (316) tie complete with RFID transponder
  • Especially suited for applications in harsh environments
  • Patented non-releasable locking feature
  • Flexible, contactless data communication
  • Clear identification of objects through unique numbering
  • Faster data management compared to paper solution
  • More accurate documentation processes – prevention of human errors
  • High frequency (HF – 13.56 MHz) and ultra high frequency (UHF – 869 MHz) available
  • Rewritable
  • Standard colour red, black coating is also available as a special
Show more

Request your individual offer now

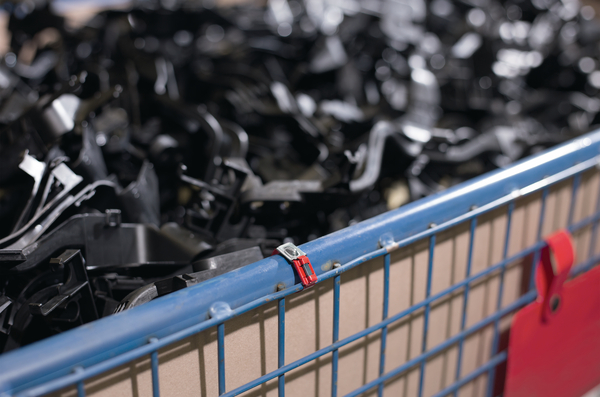

Application Stainless steel RFID cable ties are fitted with a slide-on carrier for a high frequency (HF) RFID transponder. These ties are ideal for product identification in all areas of harsh environment where high tensile strength and durability is of importance. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines.
Colour Red (RD)
Fixation Method None
Local order number MBT8HFCRFID KIT
Material Stainless Steel (SS316), Polyester (SP)
PART DESCRIPTION MBT8HFCRFID-SS316/SP-RD
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family MBTRFID – High frequency (HF), blank
Product Group Stainless steel ties with RFID transponder
Short Description RFID cable tie 201x7.9 mm, 13.56 MHz (HF), Stainless Steel, red
Tie Closure ball bearing lock
Type MBT8HFCRFID
Variant Not Serrated
Bundle Diameter max (metric) 50mm
Bundle ∅ 17-50mm
Bundle ∅ min. 17mm
Frequency 13.56 MHz (HF)
Length (L) 201mm
Memory User memory: 640 bits
Min.Tensile Strength 1020N
Weight/Unit 0.007245kg
Width (W) 7.9mm
Data Retention Up to 60 years
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning (except coating)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +70 °C
ROHS compliant Yes
Specifications
Write endurance 100000 cycles
Country of Origin GB
Customs Number 85235910
GTIN-13 / EAN 5022660343483
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.31m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00109
Packaging 1 - Weight (kg) 0.362251kg
Packaging 1 - Width (m) 0.1m
Storage Temperature -25 °C to +70 °C
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
