FlexiGuard Conduits & Fittings FG45

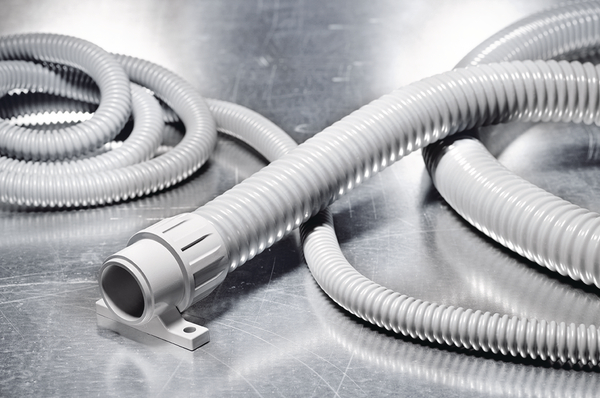

FlexiGuard PVC Protective Conduits, Article number: 167-00236

Features

  • Extremely flexible
  • Excellent mechanical protection
  • Good resistance to oils, acids and alkalis
  • Good resistance to chemicals
  • Good resistance to UV and ozone

Certifications & Approvals

Application

FlexiGuard protective hoses are used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets.

FlexiGuard PVC Protective Conduits is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) PVC protective conduit Ø38 reel 10 m
GLOBAL PART DESCRIPTION FG45-PVC/ST-GY
Pack Cont. 10m
Package Quantity per metre
Product Family FlexiGuard PVC Protective Conduits
Product Group FlexiGuard Conduits & Fittings
Bundle ∅ max. 38mm

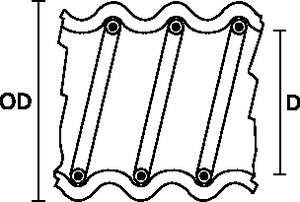

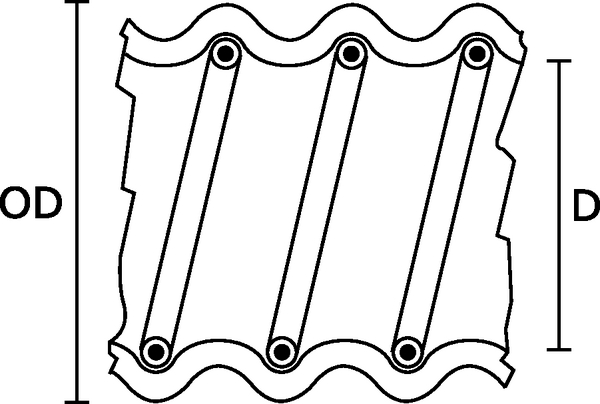

Diameter (D) 38mm
Flexibility extremely flexible
Inside Ø (ID) 38mm
Min. Bending Radius (R) 45mm
Nominal ∅ 45mm
Outside Ø (OD) 45mm
Thread Size M50
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
IP-Rating IP68
Material Flexible Polyvinyl Chloride, cadmium free (PVC), Steel (ST)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Plain inside surface (Yes/No) ETIM No
Plain ouside surface (Yes/No) ETIM No
Specifications
EAN / GTIN 4031026280738
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0375
Packaging 1 - Weight (kg) 5.4kg
Packaging 1 - Width (m) 0.5m
Reel Length 10m
Weight 5.4kg
ETIM 5.0 EC001177
ETIM 6.0 EC001177
