FlexiGuard Conduits & Fittings FG56

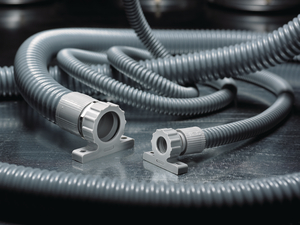

FlexiGuard PVC Protective Conduits, Article number: 167-00248

Features

  • Extremely flexible
  • Excellent mechanical protection
  • Good resistance to oils, acids and alkalis
  • Good resistance to chemicals
  • Good resistance to UV and ozone

Certifications & Approvals

Application

FlexiGuard protective hoses are used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets.

FlexiGuard PVC Protective Conduits is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) PVC protective conduit Ø48 reel 10 m
GLOBAL PART DESCRIPTION FG56-PVC/ST-GY
Pack Cont. 10m
Package Quantity per metre
Product Family FlexiGuard PVC Protective Conduits
Product Group FlexiGuard Conduits & Fittings
Bundle ∅ max. 48mm
Diameter (D) 48mm
Flexibility extremely flexible
Inside Ø (ID) 48mm
Min. Bending Radius (R) 56mm
Nominal ∅ 56mm
Outside Ø (OD) 56mm
Thread Size M63
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
IP-Rating IP68
Material Flexible Polyvinyl Chloride, cadmium free (PVC), Steel (ST)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Plain inside surface (Yes/No) ETIM No
Plain ouside surface (Yes/No) ETIM No
Specifications
EAN / GTIN 4031026280745
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.05748
Packaging 1 - Weight (kg) 7.0kg
Packaging 1 - Width (m) 0.55m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 8.1kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.221m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.172
Packaging 4 - Weight (kg) 85.8kg
Packaging 4 - Width (m) 0.8m
Reel Length 10m
Weight 7.0kg
ETIM 5.0 EC001177
ETIM 6.0 EC001177
