2-Piece Fixing Ties for Weld Studs, with Disc (for isolation material) : T50RSBH5

2-Piece Fixing Ties for Weld Studs with Plate 202x4.6 PA66HS blackArticle number: 150-16943

Features

  • Pre-assembled with cable tie and weld stud mounting base
  • Quick and easy installation
  • Head rotates into perfect position for installation
  • 'Soft-push' design for tool-free installation
  • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
  • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
  • SB5 allow lateral tolerance for fixing point

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Fixation Method Weld Stud Fixing
Fixing Hole Shape Circular
Identification Plate Position none
Local order number T50RSBH5.NB6P
Pack Cont. 500pcs.
Package Quantity per Bag
PART DESCRIPTION T50RSBH5-PA66HS-BK
Product Group 2-Piece Fixing Ties for Weld Studs, with Disc (for isolation material)
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Ties for Weld Studs with Plate 202x4.6 PA66HS black
Tie Closure plastic pawl
Variant Inside Serrated

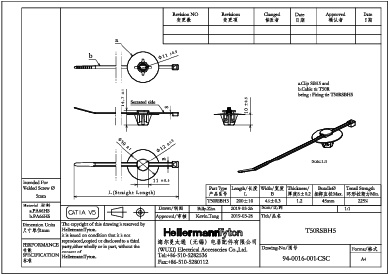

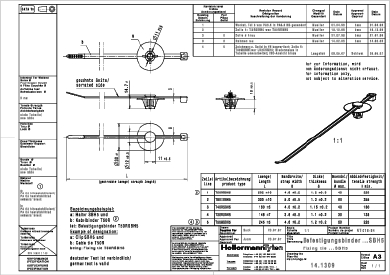

Bundle ∅ max. 45.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 30.0mm
Height (H) 1.2mm
Height (H2) 10mm
Length (L) 202mm
Length (L2) 12.0mm
Length of Fir Tree 10.0mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 11.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
GTIN-13 / EAN 4031026119632
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.529135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.99481kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 140.928kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
