14/06/2021

Type label identification, thermal transfer : TAG97TD1-1204-SR

Plain Label for Thermal Transfer Printing 101.6x74 mm silverArticle number: 596-71204

Professional type plate on a heating unit.

Features

  • Replacement option for aluminium plates
  • For applications on flat surfaces
  • Allows the identification on critical surfaces, e.g. paints and plastic variants
  • Print labels with customer unique references
  • Use text, graphics and barcodes as required

Certifications & Approvals

Application

This silver-matt label is scratch-resistant and is ideal for usage as identification or name plate in industrial environments. The high temperature range suits a wide range of applications on flat surfaces. The adhesive is also suitable for critical surfaces like plastic and paint.
Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.

Application 2 The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Application Tool TT431, TT4030
Colour Silver matt (SR)
Local order number TAG97TD1-1204-SR
Pack Cont. 500pcs.
Package Quantity per Reel
PART DESCRIPTION TAG97TD1-1204-SR-1204-SR
Product Family Material 1204 (Silver)
Product Group Type label identification, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Plain Label for Thermal Transfer Printing 101.6x74 mm silver

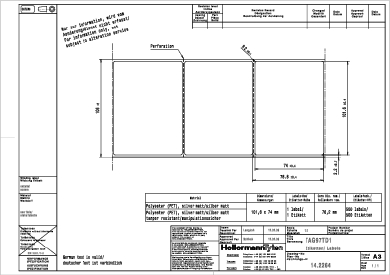

Height (H) 74.00mm
Print Method Thermal transfer printing, Laser beam printing
Thickness (T) 55.0µm
Thickness of Foil 53µm
Thickness of foil test method ISO 534
VR 76.60mm
Width (W) 101.60mm
Width of Liner (WL) 106.00mm
Adhesive Acrylic
Chem. Material Properties Excellent resistance to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Initial tack 13N
Initial tack FINAT FTM 9
Material Type 1204, Polyester (1204)
Mech. Material Properties permanent adhesive, suitable for critical surfaces
Operating Temperature - °C -40 °C to +150 °C
Recommended Ribbon Type TT822OUT
Shear strength 1000min
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
GTIN-13 / EAN 4031026295367
Labels per Row 1pc.
Packaging 1 - Height (m) 0.116m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00271
Packaging 1 - Weight (kg) 0.755kg
Packaging 1 - Width (m) 0.156m
Storage Temperature +15 °C to +25 °C
ETIM 6.0 EC001288
ETIM 7.0 Key EC001288
