Thermal Transfer Labels : TIPTAGVA15X65YEWH

Thermal Transfer Label 15x65 mm yellow/white, Article number: 556-26008

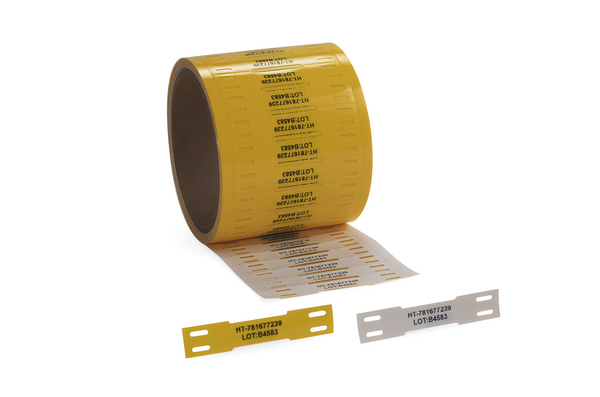

TIPTAG VA are halogen free, tear resistant, and lightweight cross laminated polyolefin tags ideal for use where weight is a critical factor. Each side has a different colour so enabling the customer to choose between a white or yellow background allowing both good contrast and reduced stock options.

The perforated structure of the TIPTAG VA ensures complete pickability. Should a customer need to pick a printed marker from a series of tags they simply remove the one that is needed with the rest remaining in place.

Should print requirements need to meet MIL-STD-202G; TIPTAG VA passes with TTDTHOUT (TTRX) on the white side and TT822OUT on the yellow side.

Certifications & Approvals

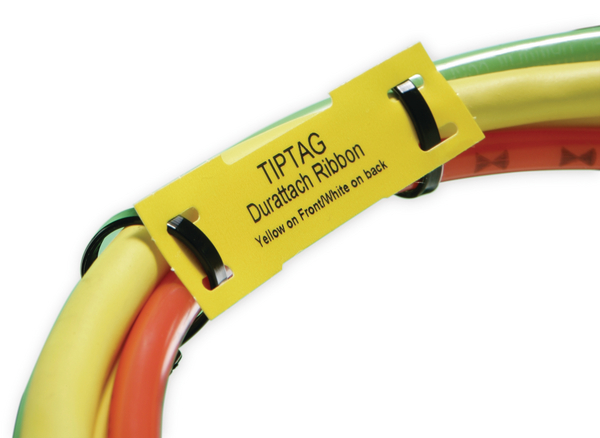

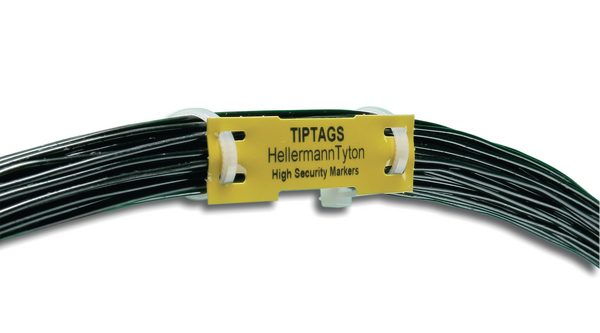

Marking of cable bundles, tubes and harnesses where low weight and permanent marking are required. An additional protective laminate is not required.

TIPTAG VA is suitable for following markets and industries

Application Tool TT431, TT431-BV, TT4030
Colour White (WH), Yellow (YE)
Fixation Method Others
Mounting method Others
Pack Cont. 500pcs.
Package Quantity per Pack
Product Family TIPTAG VA
Product Group Thermal Transfer Labels
Self adhesive (Yes/No) No
Short Description TipTag, 2.59" X .68", Polyolefin/Polyester, White/Yellow, 500/RL
Short Description Thermal Transfer Label 15x65 mm yellow/white
Type 556-26008
Variant Other
With label space Yes
H printable 15mm
Height (H) 17.4mm
Print Method Thermal transfer
Thickness of Foil 210µm
Width (W) 65.0mm
Width of printable area (Metric) 65.00mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Polyolefin (PO)
Operating Temperature - °C -50 °C to +105 °C
Recommended Ribbon Type TT822OUT, TT822OUTSM, TTHSTOUT, TTHSTOUTSM
Specifications BS-4G-198-3, Type 11a, CEN
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MIL-STD-202G Method 215K, SAE-AS81531
EAN / GTIN 4031026313580
Packaging 1 - Height (m) 0.16m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00036
Packaging 1 - Weight (kg) 0.25kg
Packaging 1 - Width (m) 0.014m
Weight 0.649lbs
Weight 0.25kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121731
