Pre-printed Cable Markers : WIC3-A,E,L,N,R,S,T,+,-,Earth

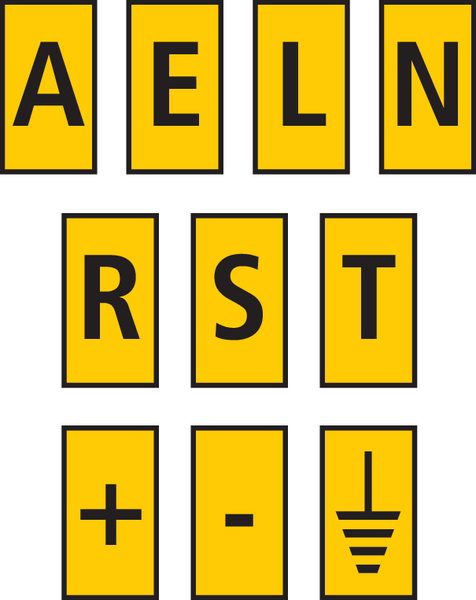

Clip On Cable Marker Set 4.3-5.3 mm yellow Imprint A,E,L,N,R,S,T,+,-,EARTH SYMBOL, Article number: 561-03994

Features

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly
  • WIC tool holds 20 WIC marker in all three sizes
  • Gripping system locks markers onto wire and resists rotation
  • Available in Yellow, White and international resistor colour code
  • Popular 2 digit markings such as L1, L2, L3, PE are available in Yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (GN), WIC1 (RD), WIC2 (BU), WIC3 (YE)

Certifications & Approvals

Application

WIC markers are applied to the wire by simply clicking them on using the WIC tool or if no tool is available they can easily be applied by hand.

Simply insert the marker strip into the back of the tool and slide down to the end and simply press the marker down over the wire. Twist the marker off and apply the next marker. Once all the markers are on slide them together until the locking mechanism engages.

WIC, snap on is suitable for following markets and industries

Application Tool WIC Tool
Colour Yellow (YE)
Fixation Method Plug in
Marking Text A,E,L,N,R,S,T,+,-,
Mounting method Plug in
Pack Cont. 500pcs.
Package Quantity per Box
PART DESCRIPTION WIC3-A,E,L,N,R,S,T,+,-,Earth-PA66-YE
Product Family WIC, snap on
Product Group Pre-printed Cable Markers
Short Description Clip On Cable Marker Set 4.3-5.3 mm yellow Imprint A,E,L,N,R,S,T,+,-,EARTH SYMBOL
Type W3AELNRST+-=YW
Variant Other
With label space No
Bundle ∅ max. 5.30mm
Bundle ∅ min. 4.30mm
Height (H) 9.60mm
Length (L) 3.0mm
Outside ∅ max. (imperial) .208"
Outside ∅ min. (imperial) .170"
Print Method Hot foil
Width (W) 8.00mm
Wire Size Range (mm²) 4.00-6.00mm²
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications EN 60062, IEC 304
EAN / GTIN 4031026216614
Packaging 1 - Height (m) 0.011m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 100
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00005
Packaging 1 - Weight (kg) 0.033kg
Packaging 1 - Width (m) 0.043m
Packaging 2 - Height (m) 0.053m
Packaging 2 - Length (m) 0.185m
Packaging 2 - Qty 500
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0006
Packaging 2 - Weight (kg) 0.191kg
Packaging 2 - Width (m) 0.062m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 27000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 13.614kg
Packaging 3 - Width (m) 0.4m
Weight 0.033kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
