Pre-printed Cable Markers : WICA-AC10-25

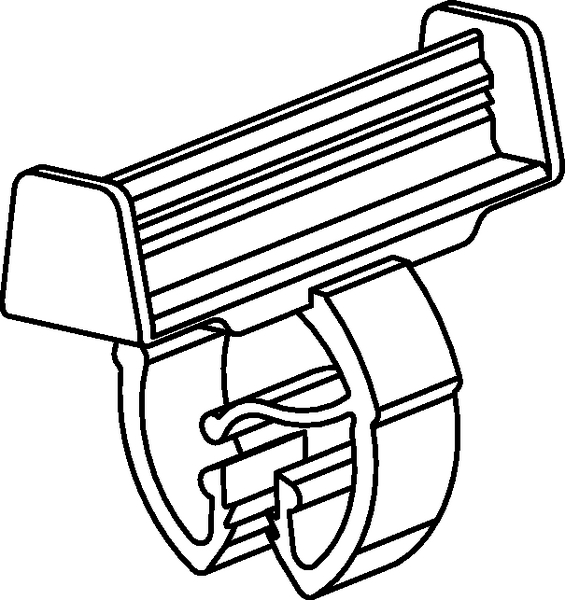

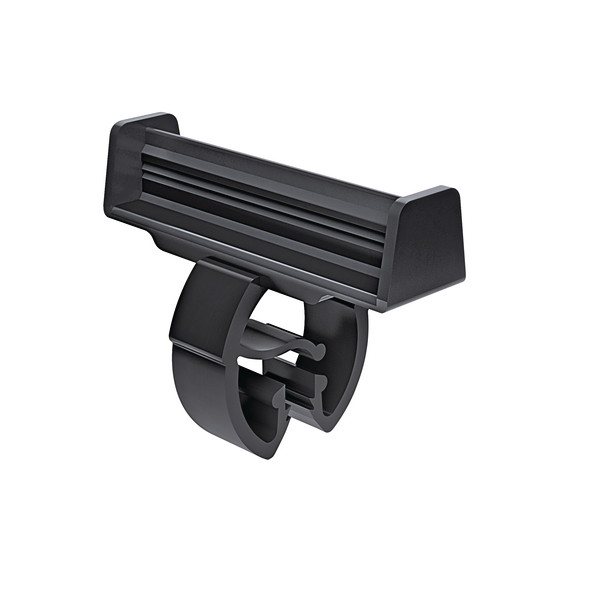

Clip On cable Adapter 5.5-9.5 mm with up to 8 markers, Article number: 561-06001

Features

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly
  • WIC tool holds 20 WIC markers in all four sizes
  • Gripping system locks markers onto wire and resists rotation
  • Available in yellow, white and international resistor colour code
  • Popular 2 digit markings such as L1, L2, L3, PE are available in yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (green), WIC1 (red), WIC2 (blue), WIC3 (yellow)
  • Two accessories available to identify cables from 2.5 mm² to 95 mm² (WICA-AC10-25 and WICA-ACT-BK)

Certifications & Approvals

Application

The WIC range of pre-printed cable markers easily snap onto cables and wires. The WIC tool ensures an easy application of the markers – simply insert the markers into the tool, slide down and press the markers onto the wire while twisting. Markers for fibre cables should be applied by hand.
All markers come with a locking mechanism to ensure perfect text alignment.

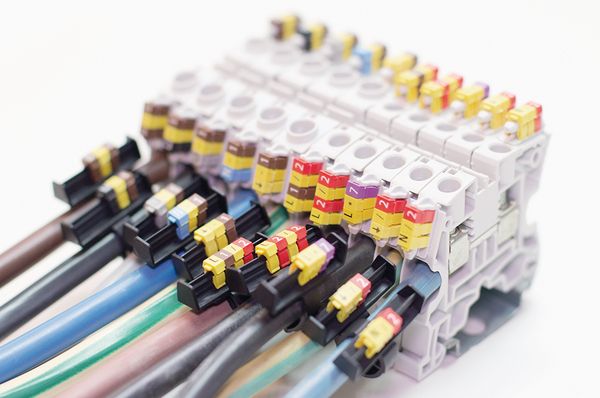

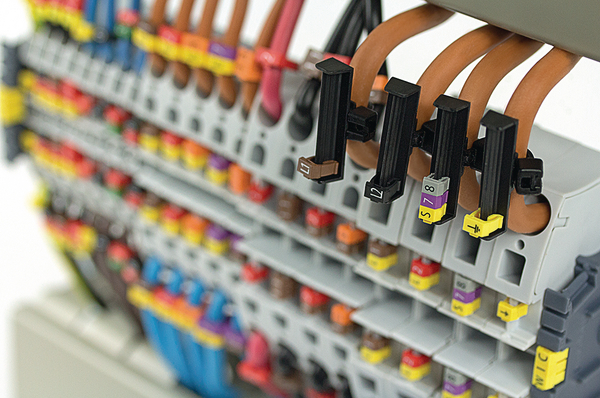

The two WICA accessories are ideal for marking cables of larger diameters (2.5 mm² - 95 mm²).

WIC, snap on is suitable for following markets and industries

Colour Black (BK)
Description Snap-on accessory
Fixation Method Snap
Marker tiles per carrier 8
Mounting method Snap
Pack Cont. 100pcs.
Package Quantity per Box
PART DESCRIPTION WICA-AC10-25-PA66HIRHS-BK
Product Family WIC, snap on
Product Group Pre-printed Cable Markers
Short Description Clip On cable Adapter 5.5-9.5 mm with up to 8 markers
Variant Other
With label space No
Bundle ∅ max. 9.50mm
Bundle ∅ min. 5.50mm

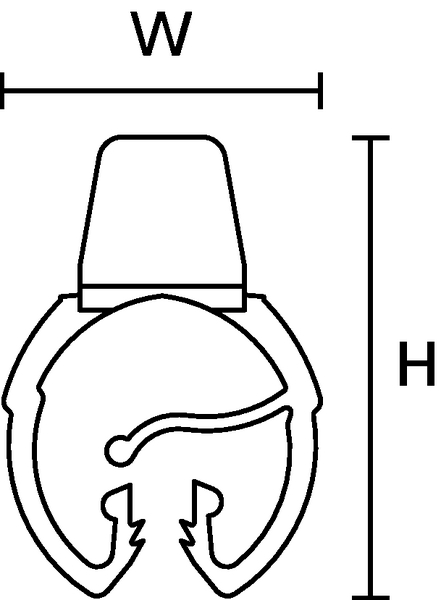

Height (H) 19.4mm
Length (L) 25.8mm
Print Method Inkjet
Width (W) 13.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications EN 60062, IEC 304
EAN / GTIN 4031026568324
Packaging 1 - Height (m) 0.062m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 100
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.096kg
Packaging 1 - Width (m) 0.052m
Weight 0.071kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
