15/04/2024

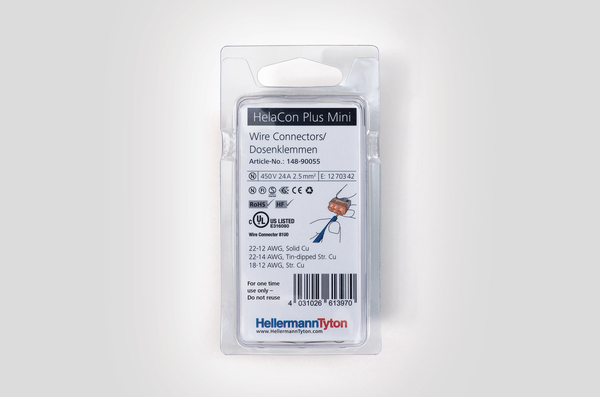

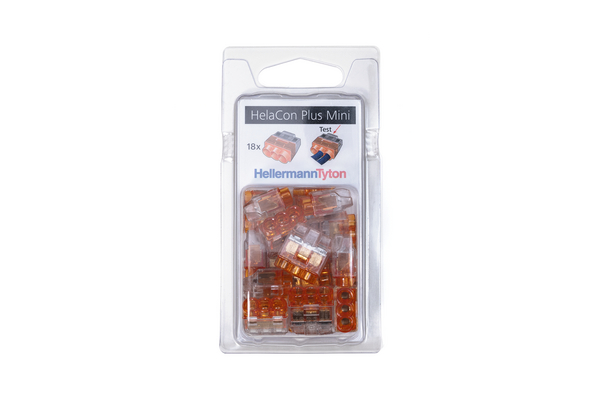

Push-in wire connector, 3 conductors, 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires, transparent/orange, 18pcs.
Art.-No. 148-90055 | HCPM-3-Blister-PC-CL/OG Details

  • 40 % smaller – Space saving design
  • Low insertion force – Easy to use, saves time on installation
  • Easy access to voltage test entry and innovative port shape design
  • Correct installation can be visually checked through transparent housing
  • Different colour codes for easy identification of size
  • Allows different conductor diameters in each entry
  • Safe application, installation and maintenance
Show more

Request your individual offer now

Application HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.
Colour Transparent (CL), Orange (OG)
Local order number HCPM-3-PC-BL
Material Polycarbonate (PC)
Number of Conductors 3
Pack Cont. 18pcs.
Package Content packed in Box
PART DESCRIPTION HCPM-3-Blister-PC-CL/OG
Product Family HelaCon Plus Mini
Product Group Connectors - For Solid and Stranded Wires
Short Description HelaCon Plus Mini wire connector for solid and stranded wires.
Suitable for flexible core (Yes/No) No
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Height (H) 7.7mm
Length (L) 16.5mm
Max Current 24A
Max Voltage 450V
Stripping Length 11mm
Weight/Unit 0.0019kg
Width (W) 15.1mm
Wire Range (cULus) 12-22 AWG Sol. Cu / 14-22 AWG Tin-dipped Str. Cu
Wire Range (VDE) 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
Specifications
Specifications 2006/65/EC, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014)
UL OCD link Link
UL-File Number E316080
Country of Origin CN
Customs Number 85369010
GTIN-13 / EAN 4031026613970
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 18
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00021
Packaging 1 - Weight (kg) 0.0342kg
Packaging 1 - Width (m) 0.055m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.37m
Packaging 3 - Qty 3240
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.029
Packaging 3 - Weight (kg) 6.656kg
Packaging 3 - Width (m) 0.245m
Packaging 4 - Height (m) 1.104m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 87480
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.06
Packaging 4 - Weight (kg) 200.712kg
Packaging 4 - Width (m) 0.8m
EFO Norway block number 100302
ETIM 7.0 Key EC000446
ETIM 8.0 Key EC000446
ETIM 9.0 Key EC000446
